SARTY combines productivity, functionality, and flexibility for industrial marking applications. The rotating table supports continuous operation, while the robust structure ensures stable and repeatable results. Compatible with a wide range of SISMA laser sources (3–50 W) and optional accessories such as rotary axes, coaxial vision systems (CVS), Pattern Matching software, and the Focus Shifter for 3D surface marking.

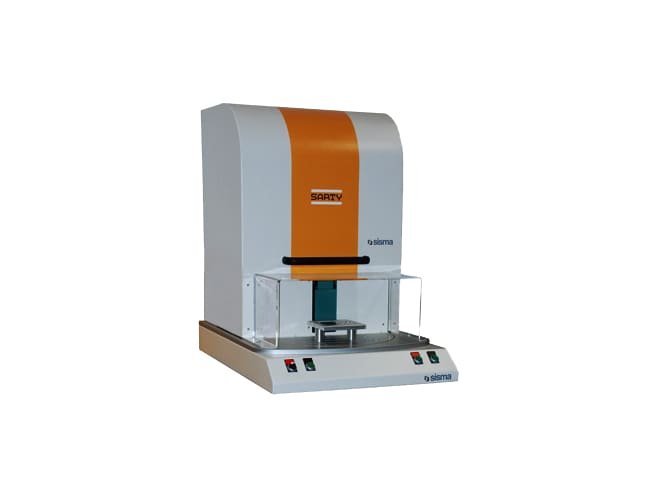

Sisma Laser Marking SARTY 10W
The SARTY 10W system offers precise laser marking and engraving with high throughput and minimal operator intervention. Its rotating table allows simultaneous loading/unloading of workpieces, and the ergonomic design ensures comfortable operation. The system supports multiple laser sources, advanced software for complex tasks, and integration with automation accessories for enhanced production efficiency.
Features
Overview
| Description | 200F EP | 300F | 500F EP | 700F EP | 30 CO2 | 60 UV |
|---|---|---|---|---|---|---|
| Active source material | Yb | Yb | Yb | Yb | CO2 | Nd |
| Wavelength | 1064 nm | 1064 nm | 1064 nm | 1064 nm | 10600 nm | 555 nm |
| Nominal laser power (W) | 20 W | 30 W | 30 W | 70 W | 30 W | 6 W |
| Work frequency PRF (KHz) | 1–1000 | 1–500 | 1–500 | 1–4000 | 0–100 | 0–500 |
| Laser pulse duration (ns) | 3–500 | 26–250 | 6–500 | 4–2000 | – | 12 |
| Pulse energy (mJ) | >1 | >1 | >1 | >1.2 | – | 0.06 |
| Peak power (kW) | >10 | >10 | >10 | >10 | – | 5 |
| Beam quality (M²) | <1.6 | <1.6 | <1.6 | <1.6 | <1.2 | <1.3 |
| PulseTune waveform | 40 | 2 | 38 | 37 | 1 | – |
| Cooling | Air | Air | Air | Air | Air | Air |
| Scan head size | 10 | 10 | 10 | 10 | 14 | 14 |
| Marking speed (rad/s)¹ | 12 | 12 | 12 | 31 | 11–30 | 11–30 |
| Marking speed (mm/s)¹ | 2000 | 2000 | 2000 | 5000 | 1800–7600 | 1800–7600 |
| Frequency of wobbles max (Hz)¹ | 600 | 600 | 600 | 2000 | – | – |
| Resolution (µrad) | 12 | 12 | 12 | 12 | 0.76 | 12–0.76 |
| Repeatability (RMS) (µrad) | 2 | 2 | 2 | 2 | <2 | 2 |
