Alat ini dilengkapi dengan sensor lever-style tanpa roda gigi untuk menghilangkan kesalahan histeresis, dua pilihan stylus (12,5 mm & 36,5 mm), dan berbagai fungsi seperti MIN/MAX/DELTA, preset, serta mode analog digital. Proteksi IP54 dan baterai CR2032 termasuk dalam setiap unit.

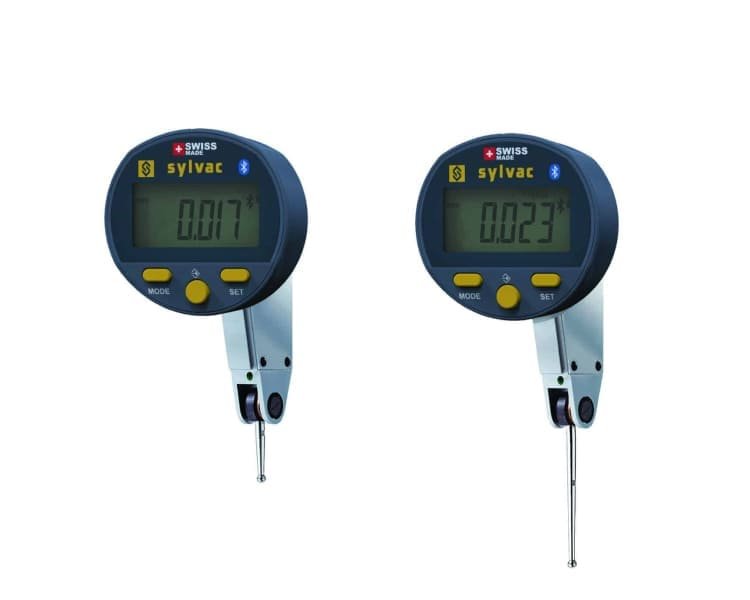

Digital Test Indicator S_DIAL Test Smart Sylvac
S_DIAL Test Smart mendukung Bluetooth nirkabel serta output data via RS232/USB, memudahkan pengiriman hasil pengukuran langsung ke PC atau sistem SPC. Ideal untuk penggunaan di automotive, aerospace, medical device, dan workshop kontrol kualitas.
Features
Overview
| 805-4321 | 805-4322 | 805-4323 | |
| EAN | 7640125688931 | 7640125689204 | 7640125689235 |
| Measurement capacity (mm) | 0.8 | 2.0 | 0.8 / 2.0 |
| Stylus length L (mm) | 12.5 | 36.5 | 12.5 / 36.5 |
| Accuracy fe (α=0°) (µm) | 3 | 8 | 3 / 8 |
| Total accuracy fges (α=0°) (µm) | 4 | 10 | 4 / 10 |
| Reversibility fu (µm) | 2 | 3 | 2 / 3 |
| Resolution | 0.001 mm / .00005 IN | ||
| Repeatability fw (µm) | 1 | ||
| Measuring force (N) | 0.15 | 0.06 | 0.15 / 0.06 |
| Friction on probe orientation (N) | 4 | 1.6 | 4 / 1.6 |
| Weight (g) | 70 | ||
| Protection rating according to IEC 60529 | IP54 | ||
| Output data | Bluetooth wireless technology / RS232 / USB | ||
| Zero setting | ⬤ | ||
| min / max / delta display | ⬤ | ||
| Analog display | ⬤ | ||
| Selection of resolution | ⬤ | ||
| Preset (0.01 resolution) | ±99.999 mm / ±3.99995 IN (±999.99 mm / ±39.9995 IN) | ||
