Perangkat ini mampu menerima berbagai input sensor — seperti NPN open-collector, kontak, gelombang kotak (square), dan gelombang sinus — sehingga kompatibel dengan pulse generator, proximity sensor, dan sensor magnetik.
Process Panel Meters DT-5TXR Shimpo

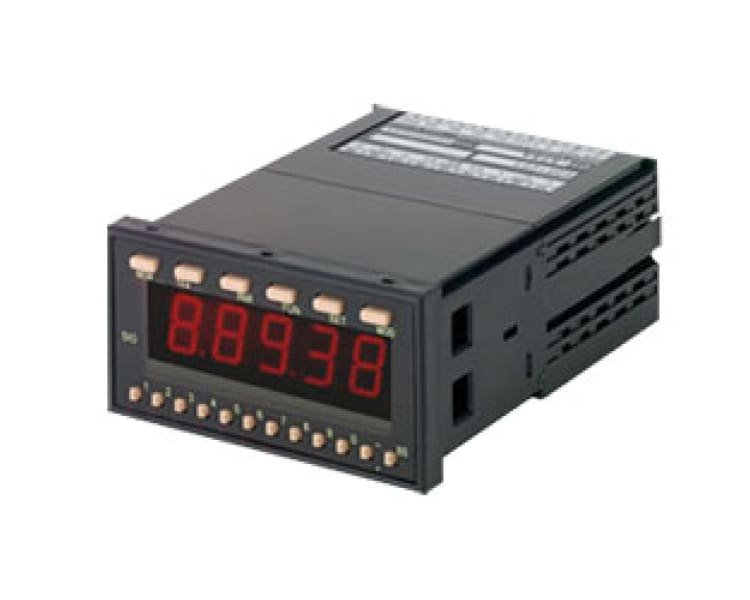

DT-5TXR memiliki layar LED 6 digit besar, plus dua tampilan sekunder 6 digit, memungkinkan pemantauan jarak jauh. Pengaturan skalabilitas, update time, dan modul output membuatnya ideal untuk kontrol proses dan analisis.
Features
Display
| Parameter | Nilai / Spesifikasi |
|---|---|
| Model | DT-5TXR |
| Rentang Pengukuran | 10 – 99.000 RPM (1 ppr) ; 0,2 – 30.000 RPM (60 ppr) |
| Display Range | 00000–99999 dengan titik desimal yang dapat dipilih |
| Update Time (waktu tampilan) | 0.2, 0.5, 1, 2, 5, 10, 15, 30, 60 detik |
| Akurasi | ± 0.008% ± 1 digit |
| Frekuensi Input Sensor Maksimum | – Sine wave: 10 kHz – Square wave: 30 kHz – Contact: 20 Hz – Open Collector: 100 kHz |
| Catu Daya Sensor | 12 V DC, 150 mA |
| Power Supply | 85 – 264 VAC (50/60 Hz) (atau versi 9-35 V DC pada model DC) |
| Skalabilitas | Ya, dapat diprogram untuk berbagai proses & output modul |
| Proteksi Panel | IP66 pada bagian depan untuk tahan cipratan / wash-down |
| Dimensi / Berat | 134 × 96 × 48 mm (5.27″ × 3.78″ × 1.89″), berat ± 300 g |
| Suhu Operasi | 0 – 45 °C (32 – 113°F) |
Plug-In Modules
| Module | Description |
|---|---|
| DOP-BCD | BCD output module, 36 Pin Connection |
| DOP-CPTR | Relay output module, terminal block connection |
| DOP-FVC | Analog output module (4-20mA & 0-1, 0-10, 1-5 VDC), 36-pin connection |
| DOP-FVTR | Analog output module (4-20mA & 0-1, 0-10, 1-5 VDC), terminal block connection |
| DOP-RMTR | Ratio input module, terminal block connection |
| DOP-TRC | NPN open collector output module, 36 pin connection |
| DOP-TRTR | NPN open collector output module, terminal block connection |
Specifications
| Measuring Range | 10 – 99,999 rpm (at 1 p/r) 0.2 – 30,000 rpm (at 60 p/r) |
| Display Range | Tachometer/Rate Meter: 0 – 999999 with selectable decimal point Elapsed Time: 0:00:00 – 9:59:59 or 0.00 – 999.99 sec. Process Time: 0:00:00 – 0:59:59 or 0.00 – 999.99 sec. |
| Scalable | Yes (with outputs, see modules) |
| Accuracy | Tachometer/Rate Meter & Elapsed Time: ± 0.008 % ± 1 digit Process Time: ± 0.008 % ± 1 digit |
| Display Update Time | 0.2, 0.5, 1, 2, 5, 10, 15, 30, 60 sec. |
| Input No. of P/R | 1 to 9,999 (programmable) |
| Input Signal Characteristics | NPN open collector input: max. frequency 100 kHz / Contact input: max. frequency 20 Hz / Square wave input: max. frequency 30 kHz – Sine wave input (magnetic pickup): max. frequency 10 kHz |
| Sensor Power Supply | 12 VDC (150 mA) |
| Power Requirement | 85 – 264 VAC (50/60 Hz) Optional (9 – 35 VDC at 1 W also available) |
| Ambient Temperature | 32° – 113° F (0 – 45° C) |
| Dimensions | 5.27″ x 3.78″ x 1.89″ (134 x 96 x 48 mm) |
| Product Weight | 0.66 lb (300 g) |
| Package Weight | 0.95 lb (430 g) |
| Warranty | 2 Years |
| Included Accessories | Mounting adapters & screws, decal sheet |
