Produk SRL memberikan solusi non-destruktif untuk mengukur atau mereplikasi bentuk internal komponen sulit dijangkau. Setelah aplikasi, material mengeras menjadi fleksibel atau semi-kaku: mempertahankan detail geometri dan memungkinkan pengukuran dengan instrumen metrologi — ideal untuk kontrol kualitas, inspeksi dan reverse-engineering.
Plastiform SRL Liquid Products Sylvac Sylvac
Dengan Sylvac Plastiform SRL Anda bisa membuat cetakan internal dengan akurasi tinggi (detail permukaan, geometri, tekstur) tanpa residu ketika dilepas. Cocok untuk komponen presisi, inspeksi bentuk, pengukuran internal grooves atau ulir, serta verifikasi surface finish — baik di industri otomotif, manufaktur, maupun metalworking.
Features
Overview

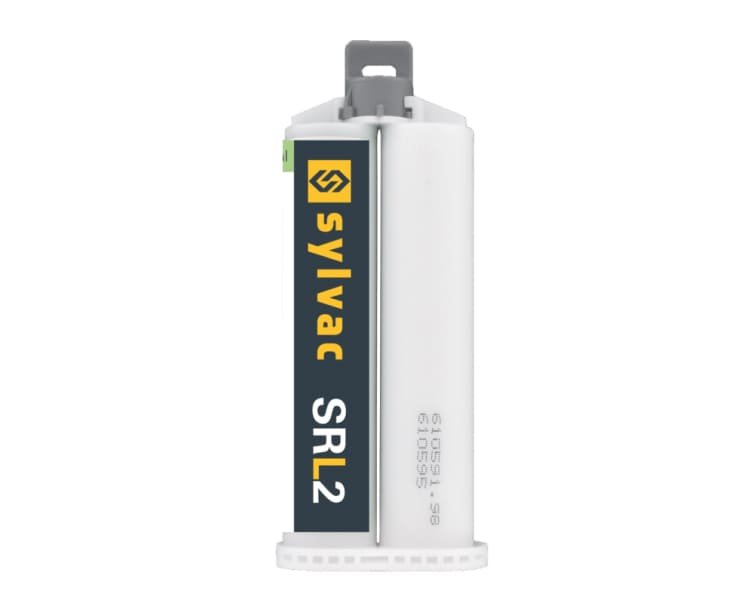

| Cartridges 50ml | 928-2002 | 928-2006 | 928-2102 | 928-2106 |
| EAN | 3760291480512 | 3760291480550 | 3760291480598 | 3760291480635 |
| Type | SRL2 | SRL3V | SRL5 | SRL8 |
| Description | 8 Cartridges 50ml + 48 Standard Nozzles + 6 Tips | |||
| Color | ||||
| Final consistency | Flexible | Semi-Flexible | Semi-Flexible | Rigid |
| Final hardness Shore A | 20 | 30 | 50 | 85 |
| Removal constraint | 30% | 20% | 10% | 0% |
| Curing time |  | | | |
| Contact measurement | x | x | ✓* | ✓ |
| Cut with cutter ? | x | x | ✓ | x |
| Cartridges 400ml | 928-3001 | 928-3003 | 928-3005 |
| EAN | 3760291480727 | 3760291480741 | 3760291480765 |
| Type | SRL2 L | SRL5 L | SRL8 L |
| Description | 1 Cartridge 400ml + 10 Quadro Nozzles | ||
| Color | |||
| Final consistency | Flexible | Semi-Flexible | Semi-Rigid |
| Removal constraint | 30% | 5% | 0% |
| Final hardness Shore A | 20 | 50 | 85 |
| Curing time | | | |
| Contact measurement | x | x | ✓ |
| Cut with cutter ? | x | ✓ | x |
| Bags | 928-4001 |
| EAN | 3760291480772 |
| Description | Bag of 500g |
| Color | |
| Final consistency | Rigid |
| Cut with cutter ? | x |

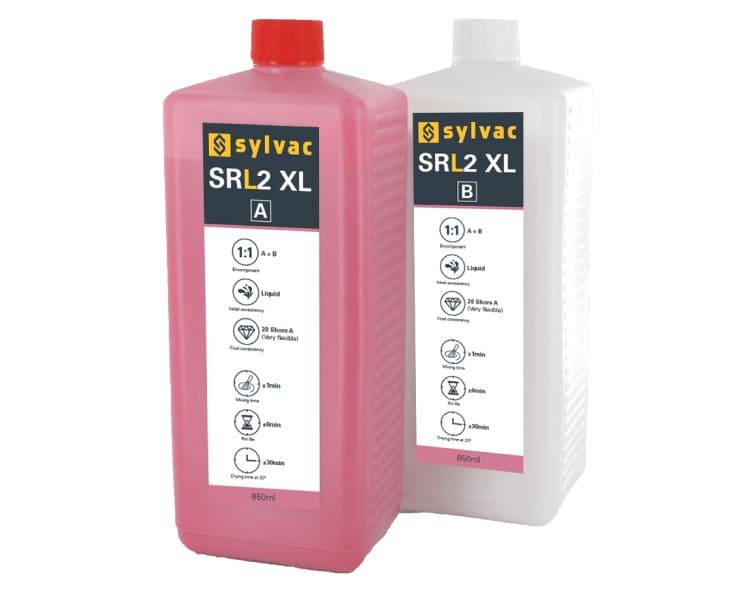

| Cans 1.7l | 928-8001 | 928-8005 | 928-8009 |
| EAN | 3760291480994 | 3760291481038 | 3760291481076 |
| Type | SRL2 XL | SRL5 XL | SRL8 XL |
| Description | 1 Can 1.7l (2x 850ml) | ||
| Color | |||
| Final consistency | Flexible | Semi-Flexible | Semi-Rigid |
| Removal constraint | 30% | 5% | 0% |
| Final hardness Shore A | 20 | 50 | 85 |
| Curing time | | | |
| Contact measurement | x | x | ✓ |
| Cut with cutter ? | x | ✓ | x |
| Bags | 928-4001 |
| EAN | 3760291480772 |
| Description | Bag of 500g |
| Color | |
| Final consistency | Rigid |
| Cut with cutter ? | x |

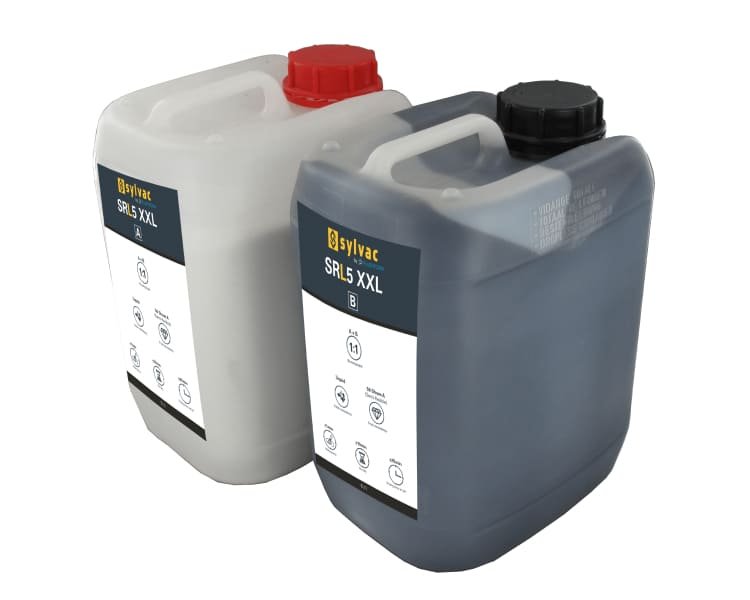

| Cans 10.2l | 928-8002 | 928-8006 | 928-8010 |
| EAN | 3760291481007 | 3760291481045 | 3760291481083 |
| Type | SRL2 XXL | SRL5 XXL | SRL8 XXL |
| Description | 1 Can 10.2l (2x 5.1l) | ||
| Color | |||
| Final consistency | Flexible | Semi-Flexible | Semi-Rigid |
| Removal constraint | 30% | 5% | 0% |
| Final hardness Shore A | 20 | 50 | 85 |
| Curing time | | | |
| Contact measurement | x | x | ✓ |
| Cut with cutter ? | x | ✓ | x |
| Cut with cutter ? | x | ||
