Stage RC Series memiliki kapasitas beban hingga 39,2 N (4 kgf) dan skala pembacaan minimum 1°. Desainnya tahan lama menggunakan aluminium alloy dengan finishing matt black alumite, cocok untuk aplikasi optik, inspeksi dan pengaturan posisi sudut yang presisi dalam sistem mikroskop dan otomasi.

Miruc Gate Turning Stage RC Series

Gate Turning Stage RC memungkinkan pengaturan posisi objek secara fleksibel dalam ruang terbatas. Dengan rotasi 360° dan bending 180°, skala pengukuran 1°, serta bobot ringan (0,5–0,57 kg), stage ini sangat cocok untuk sistem pengamatan, mikroskop terbalik, dan aplikasi modular optik.

Features

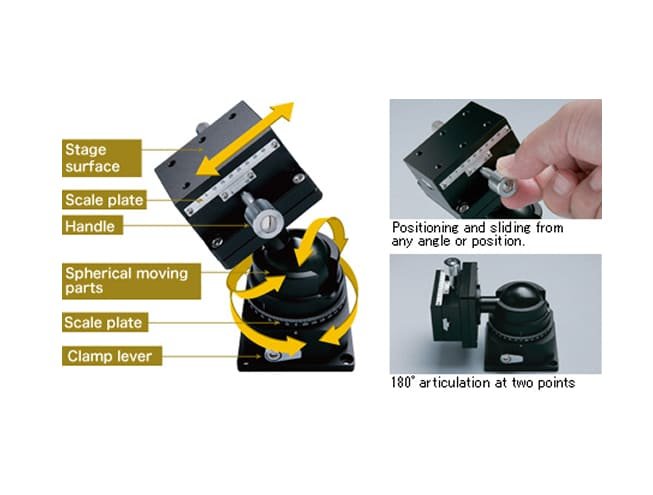

Dual-Axis Orientation (Tilt + Rotation)

Stage allows up to 180° “bending” (tilt) plus full 360° rotation, so you can orient the platform in almost any angle or attitude.

Versatile Stage Surface Sizes

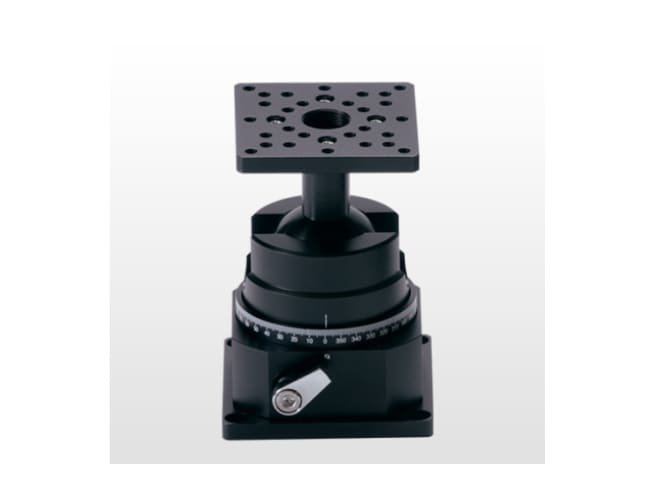

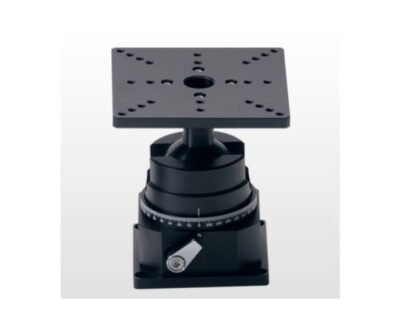

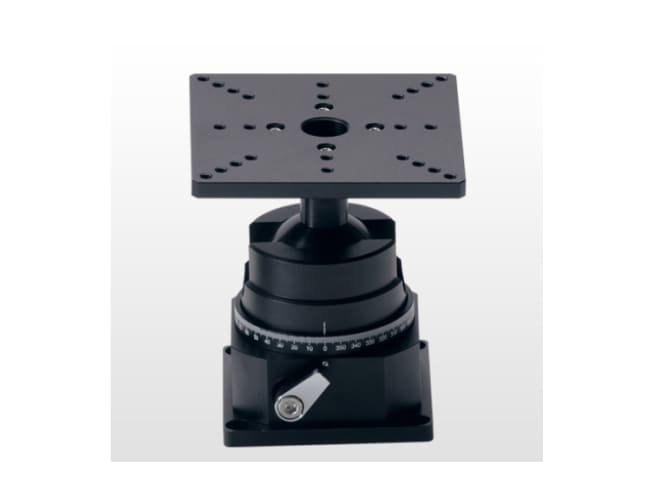

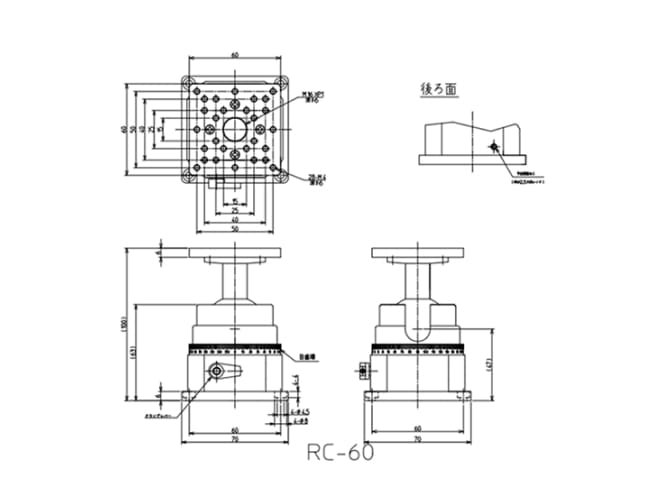

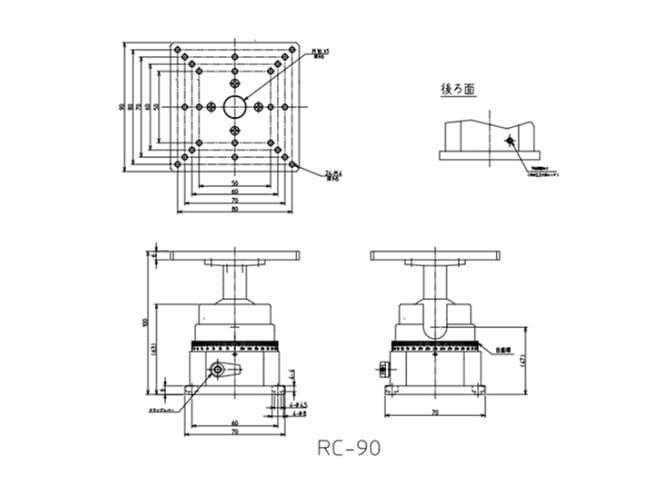

Available in 60×60 mm (RC-60) or 90×90 mm (RC-90) area to accommodate different size specimens or fixtures.

Solid Load Capacity

Both models support up to 39.2 N (≈ 4 kgf), enough for many microscopy or inspection setups.

Clear Scale Readability

Minimum scale reading is 1°, enabling coarse but usable angular reference during tilt or rotation. Good for frequently re-positioning at known angles.

Durable Construction and Finish

Stage body is aluminium alloy and treated with matt black alumite (matte black anodizing) to reduce reflection and provide resistance, with precise machining.
