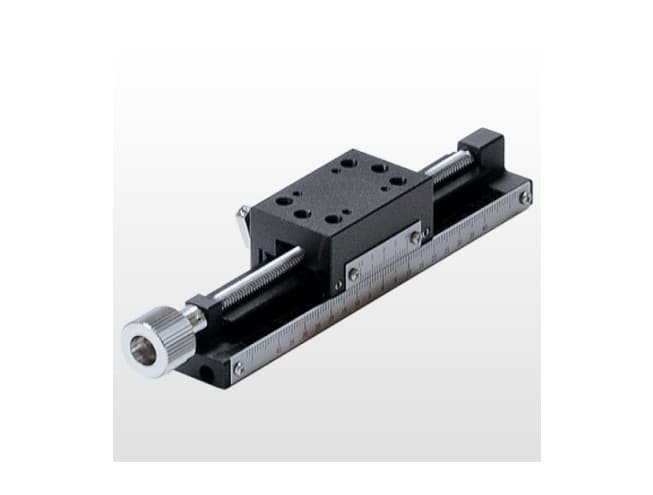

Miruc Dovetail Feed Screw Stage
Miruc Dovetail Feed Screw Stage mengusung mekanisme sekrup diferensial untuk kontrol gerakan halus dan presisi. Satu putaran pegangan bisa diatur untuk bergerak 2 mm, 5 mm, atau 10 mm, sesuai aplikasi. Ideal untuk penyesuaian optik, pemfokusan mikroskop, atau posisi halus dalam ruang terbatas.

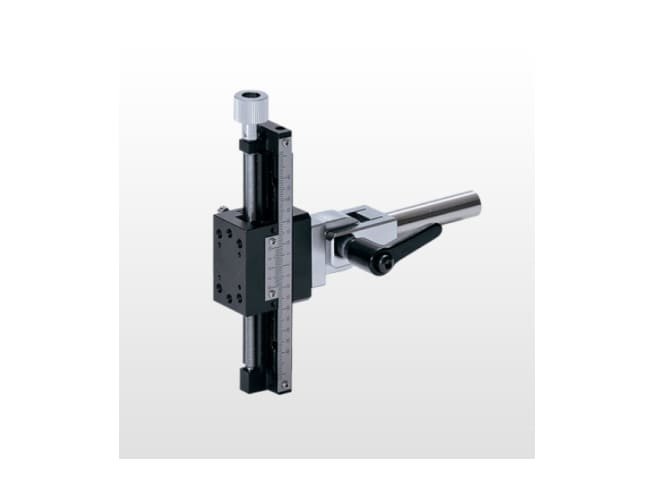

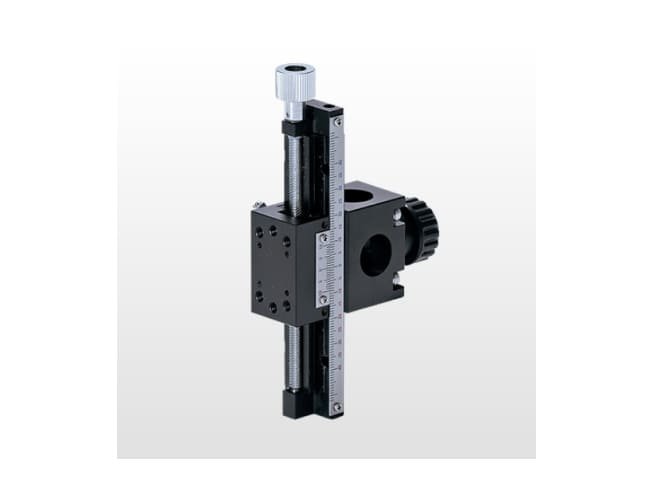

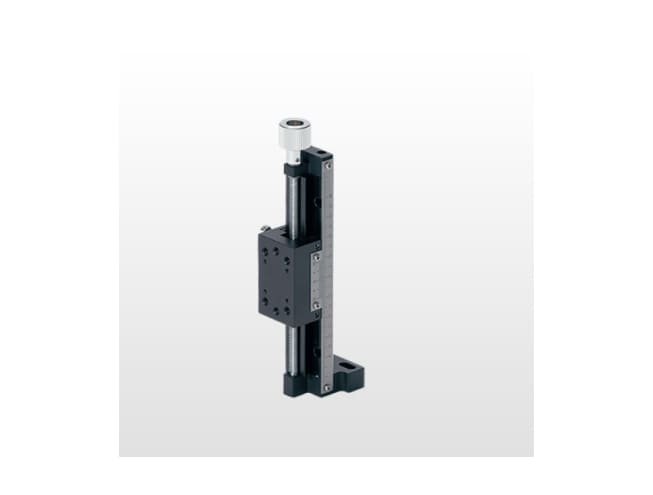

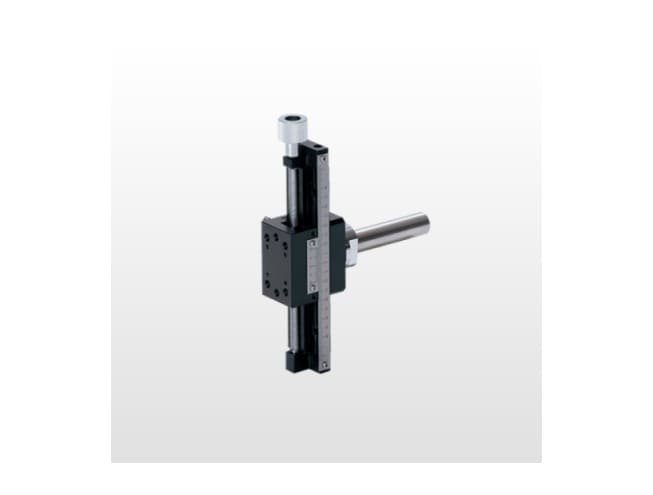

Stage feed screw Miruc dilengkapi skala tipe pembagi warna sentral yang mudah dibaca. Skala dan tuas pengunci dapat dilepas dan dipasang di sisi kiri atau kanan, memudahkan konfigurasi cermin. Opsi tambahan termasuk model dengan dua pegangan, pegangan ekstensi, dan versi paralel ganda.
Miruc Dovetail Feed Screw Stage
Jenis multi-fungsi dari feed screw stage ini menawarkan kombinasi lintasan panjang dengan pitch tetap dan gerakan yang halus. Sangat berguna untuk aplikasi di ruang terbatas dan ketika presisi tinggi diperlukan pada pergerakan dalam sistem optik dan instrumentasi.
Features
Overview
| Model | Axis / Type | Stage Surface (mm) | Travel (mm) | Travel per Rotation (mm) | Travel Precision (µm) | Load Capacity N (kgf) | Min. Scale Reading (mm) | Weight (kg) | Straightness (mm) | Parallelism (mm) | Catatan |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XTSC-70 | X-axis | 25 × 40 | ±17 | 2 / 5 | 30 | 29.4 (3) | 0.1 | 0.12 | 0.12 | 0.16 | – |
| ZTSC-70 | Z-axis | 25 × 40 | ±17 | 2 / 5 | 30 | 14.7 (1.5) | 0.1 | 0.16 | 0.12 | 0.16 | – |
| XTSC-90 | X-axis | 25 × 40 | ±27 | 2 / 5 / 10 | 30 | 29.4 (3) | 0.1 | 0.14 | 0.14 | 0.18 | – |
| ZTSC-90 | Z-axis | 25 × 40 | ±27 | 2 / 5 / 10 | 30 | 14.7 (1.5) | 0.1 | 0.18 | 0.14 | 0.18 | – |
| XTSC-120 | X-axis | 25 × 40 | ±42 | 2 / 5 / 10 | 30 | 29.4 (3) | 0.1 | 0.16 | 0.16 | 0.20 | – |
| ZTSC-120 | Z-axis | 25 × 40 | ±42 | 2 / 5 / 10 | 30 | 14.7 (1.5) | 0.1 | 0.20 | 0.16 | 0.20 | – |
| XTSC-150 | X-axis | 25 × 40 | ±57 | 5 / 10 | 40 | 29.4 (3) | 0.1 | 0.18 | 0.18 | 0.22 | – |
| ZTSC-150 | Z-axis | 25 × 40 | ±57 | 5 / 10 | 40 | 14.7 (1.5) | 0.1 | 0.22 | 0.18 | 0.22 | – |
| TSC-70BC | Support Holder | 25 × 40 | ±17 | 2 / 5 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.20 | – | – | BC (Block) |
| TSC-90BC | Support Holder | 25 × 40 | ±27 | 2 / 5 / 10 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.22 | – | – | – |
| TSC-120BC | Support Holder | 25 × 40 | ±42 | 2 / 5 / 10 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.24 | – | – | – |
| TSC-150BC | Support Holder | 25 × 40 | ±57 | 5 / 10 | 40 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.26 | – | – | – |
| TSC-70SF | Support Type | 25 × 40 | ±17 | 2 / 5 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.23 | – | – | SF (Stand Fix) |
| TSC-90SF | Support Type | 25 × 40 | ±27 | 2 / 5 / 10 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.25 | – | – | – |
| TSC-120SF | Support Type | 25 × 40 | ±42 | 2 / 5 / 10 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.27 | – | – | – |
| TSC-150SF | Support Type | 25 × 40 | ±57 | 5 / 10 | 40 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.29 | – | – | – |
| TSC-70AR | Articulated (180°) | 25 × 40 | ±17 | 2 / 5 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.39 | – | – | AR (Articulated) |
| TSC-90AR | Articulated (180°) | 25 × 40 | ±27 | 2 / 5 / 10 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.41 | – | – | – |
| TSC-120AR | Articulated (180°) | 25 × 40 | ±42 | 2 / 5 / 10 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.43 | – | – | – |
| TSC-150AR | Articulated (180°) | 25 × 40 | ±57 | 5 / 10 | 40 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.45 | – | – | – |
