MICROGAUGE 2 Point Bore Gauging Individual Heads 1-10MM Bowers

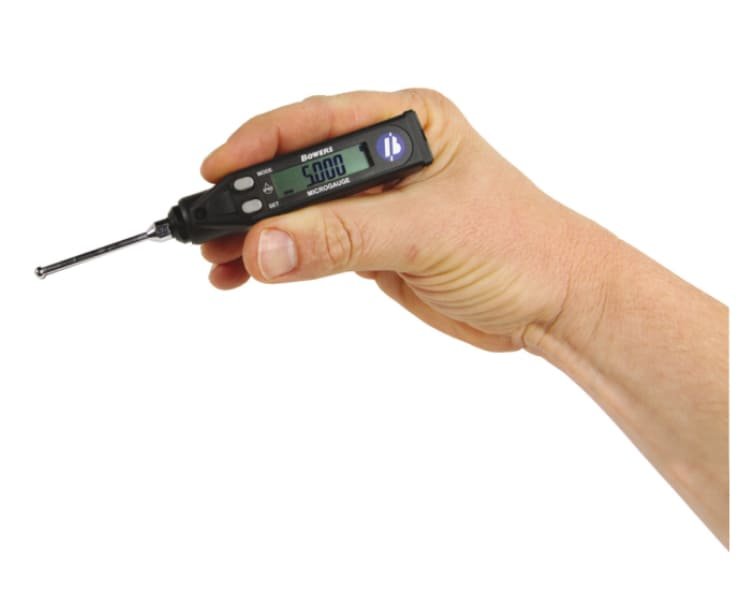

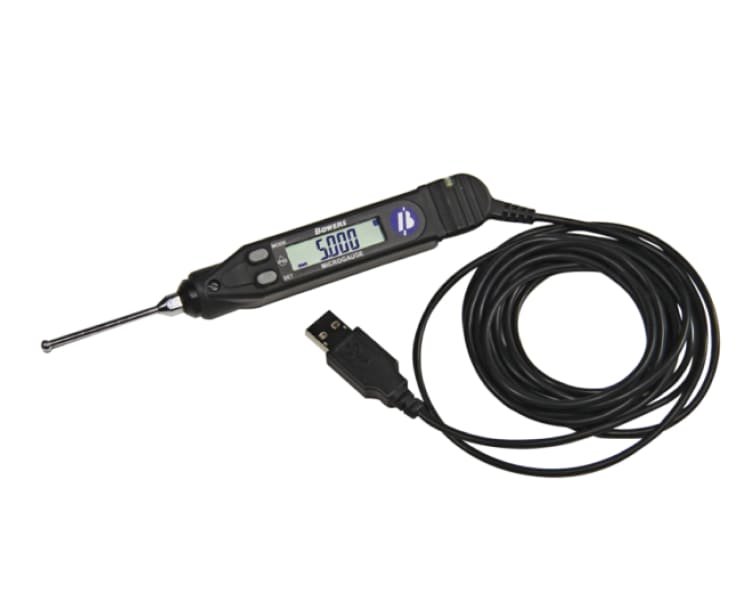

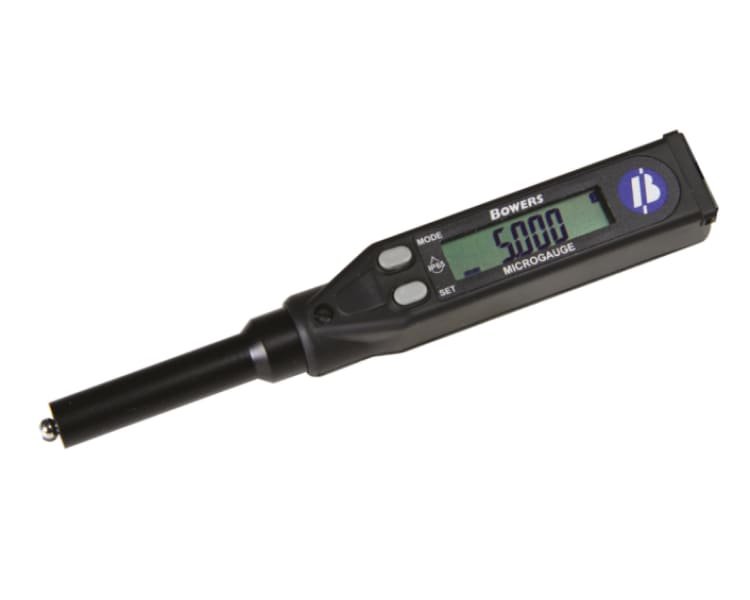

Bowers MicroGauge 2-Point Bore Gauging Individual Heads adalah solusi pengukuran lubang kecil (1–10 mm) dengan kepala pengukur presisi dan kontak bola keras berlapis krom. Dirancang untuk dipasangkan dengan display digital MicroGauge (sold separately), setiap head memberikan pengukuran akurat dan repeatable untuk inspeksi lubang internal presisi tinggi.
Set kepala pengukur individual Bowers MicroGauge mendukung berbagai rentang kecil dari 0.95 hingga 10.35 mm, ideal untuk pemantauan kontrol kualitas dan produksi. Kepala-kepala ini kompatibel dengan readout digital MicroGauge dan setting rings ber-sertifikat UKAS untuk traceability, menawarkan solusi metrologi fleksibel.
MICROGAUGE 2 Point Bore Gauging Individual Heads 1-10MM Bowers
MicroGauge 2-Point Bore Gauging Individual Heads dari Bowers memberi kebebasan memilih kepala pengukur sesuai kebutuhan lubang kecil spesifik. Dengan titik kontak bola keras krom dan kompatibilitas dengan display digital serta setting ring UKAS certified, alat ini cocok untuk workshop dan laboratorium yang memerlukan akurasi tinggi.
Features
Spesification
| Product Code | Range (mm) | Range (inch) | Measuring Depth (mm) | Setting Ring (mm) | Price |
| MG011W | 0.95-1.15 | 0.037-0.045 | 0.6-11 | 1.00 | POA |
| MG012W | 1.07-1.25 | 0.042-0.049 | 0.6-11 | 1.10 | POA |
| MG013W | 1.17-1.35 | 0.046-0.053 | 0.6-11 | 1.20 | POA |
| MG014W | 1.27-1.45 | 0.050-0.057 | 0.6-11 | 1.30 | POA |
| MG015W | 1.37-1.55 | 0.054-0.061 | 0.6-11 | 1.40 | POA |
| MG016W | 1.50-1.90 | 0.059-0.075 | 0.9-17 | 1.75 | POA |
| MG017W | 1.80-2.20 | 0.071-0.087 | 0.9-17 | 2.00 | POA |
| MG018W | 2.05-2.45 | 0.081-0.096 | 0.9-17 | 2.25 | POA |
| MG019W | 2.25-2.75 | 0.089-0.108 | 1.2-22 | 2.50 | POA |
| MG020W | 2.50-3.00 | 0.098-0.118 | 1.2-22 | 2.75 | POA |
| MG021W | 2.75-3.25 | 0.108-0.128 | 1.2-22 | 3.00 | POA |
| MG022W | 3.00-3.50 | 0.118-0.138 | 1.2-22 | 3.25 | POA |
| MG023W | 3.25-3.75 | 0.128-0.148 | 1.2-22 | 3.50 | POA |
| MG024W | 3.50-4.00 | 0.138-0.157 | 1.2-22 | 3.75 | POA |
| MG025W | 3.75-4.25 | 0.148-0.167 | 1.2-22 | 4.00 | POA |
| MG026W | 3.65-4.35 | 0.144-0.171 | 2.0-40 | 4.00 | POA |
| MG027W | 4.15-4.85 | 0.163-0.191 | 2.0-40 | 4.50 | POA |
| MG028W | 4.65-5.35 | 0.183-0.211 | 2.0-40 | 5.00 | POA |
| MG029W | 5.15-5.85 | 0.203-0.230 | 2.0-40 | 5.50 | POA |
| MG030W | 5.65-6.35 | 0.222-0.250 | 2.0-40 | 6.00 | POA |
| MG031W | 6.15-6.85 | 0.242-0.270 | 2.0-40 | 6.50 | POA |
| MG032W | 6.65-7.35 | 0.262-0.290 | 2.0-40 | 7.00 | POA |
| MG033W | 7.15-7.85 | 0.281-0.309 | 2.0-40 | 7.50 | POA |
| MG034W | 7.65-8.35 | 0.301-0.329 | 2.0-40 | 8.00 | POA |
| MG035W | 8.15-8.85 | 0.321-0.349 | 2.0-50 | 8.50 | POA |
| MG036W | 8.65-9.35 | 0.340-0.368 | 2.0-50 | 9.00 | POA |
| MG037W | 9.15-9.85 | 0.360-0.388 | 2.0-50 | 9.50 | POA |
| MG038W | 9.65-10.35 | 0.380-0.408 | 2.0-50 | 10.00 | POA |
| Product Code | Range (mm) | Range (inch) | Measuring Depth (mm) | Setting Ring (mm) | Price |
| MG038W | 9.65-10.35 | 0.380-0.408 | 2.0-50 | 10.00 | POA |
| MG037W | 9.15-9.85 | 0.360-0.388 | 2.0-50 | 9.50 | POA |
| MG036W | 8.65-9.35 | 0.340-0.368 | 2.0-50 | 9.00 | POA |
| MG035W | 8.15-8.85 | 0.321-0.349 | 2.0-50 | 8.50 | POA |
| MG034W | 7.65-8.35 | 0.301-0.329 | 2.0-40 | 8.00 | POA |
| MG033W | 7.15-7.85 | 0.281-0.309 | 2.0-40 | 7.50 | POA |
| MG032W | 6.65-7.35 | 0.262-0.290 | 2.0-40 | 7.00 | POA |
| MG031W | 6.15-6.85 | 0.242-0.270 | 2.0-40 | 6.50 | POA |
| MG030W | 5.65-6.35 | 0.222-0.250 | 2.0-40 | 6.00 | POA |
| MG029W | 5.15-5.85 | 0.203-0.230 | 2.0-40 | 5.50 | POA |
| MG028W | 4.65-5.35 | 0.183-0.211 | 2.0-40 | 5.00 | POA |
| MG027W | 4.15-4.85 | 0.163-0.191 | 2.0-40 | 4.50 | POA |
| MG026W | 3.65-4.35 | 0.144-0.171 | 2.0-40 | 4.00 | POA |
| MG025W | 3.75-4.25 | 0.148-0.167 | 1.2-22 | 4.00 | POA |
| MG024W | 3.50-4.00 | 0.138-0.157 | 1.2-22 | 3.75 | POA |
| MG023W | 3.25-3.75 | 0.128-0.148 | 1.2-22 | 3.50 | POA |
| MG022W | 3.00-3.50 | 0.118-0.138 | 1.2-22 | 3.25 | POA |
| MG021W | 2.75-3.25 | 0.108-0.128 | 1.2-22 | 3.00 | POA |
| MG020W | 2.50-3.00 | 0.098-0.118 | 1.2-22 | 2.75 | POA |
| MG019W | 2.25-2.75 | 0.089-0.108 | 1.2-22 | 2.50 | POA |
| MG018W | 2.05-2.45 | 0.081-0.096 | 0.9-17 | 2.25 | POA |
| MG017W | 1.80-2.20 | 0.071-0.087 | 0.9-17 | 2.00 | POA |
| MG016W | 1.50-1.90 | 0.059-0.075 | 0.9-17 | 1.75 | POA |
| MG015W | 1.37-1.55 | 0.054-0.061 | 0.6-11 | 1.40 | POA |
| MG014W | 1.27-1.45 | 0.050-0.057 | 0.6-11 | 1.30 | POA |
| MG013W | 1.17-1.35 | 0.046-0.053 | 0.6-11 | 1.20 | POA |
| MG012W | 1.07-1.25 | 0.042-0.049 | 0.6-11 | 1.10 | POA |
| MG011W | 0.95-1.15 | 0.037-0.045 | 0.6-11 | 1.00 | POA |
