Gauge ini menggabungkan pegangan ergonomis dan elektronik IP67 tahan debu/ciprat untuk kerja di workshop. Fitur 2-button operation, 4 preset memories, dan output proximity & Bluetooth memungkinkan integrasi data real-time dan analisis hasil pengukuran secara digital.

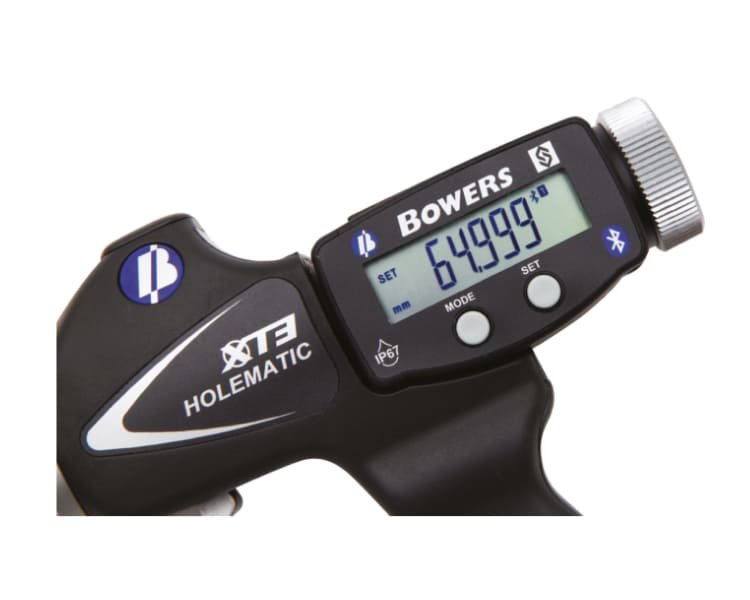

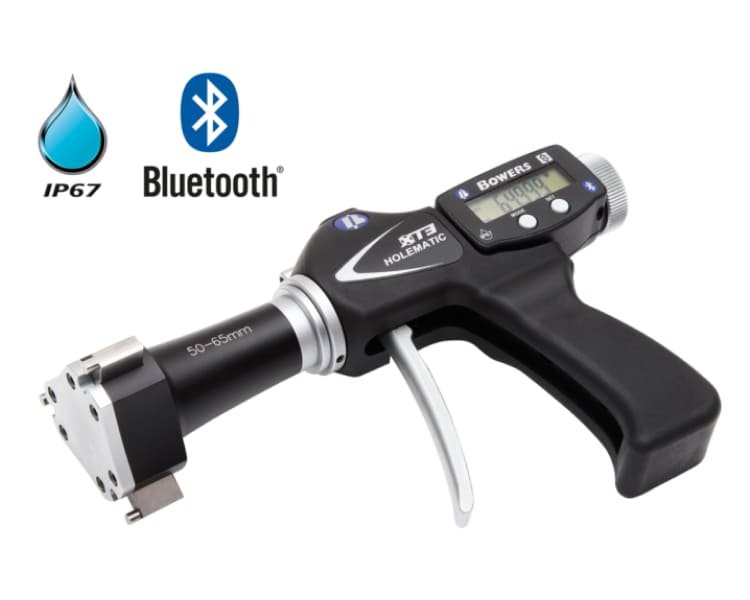

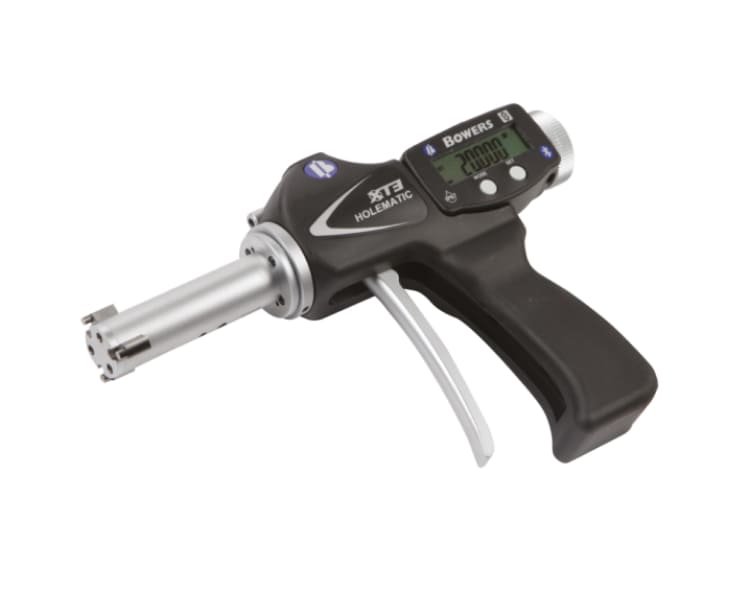

XT3 Digital Pistol Grip Bore Gauge With Bluetooth Metric Bowers

Bowers XT3-BT memberikan pengukuran internal slow bore dengan kepala self-centring dan resolusi tinggi 0.001 mm (0.00005″). Dengan blind bore support dan opsi ekstensi untuk lubang dalam, ini cocok untuk inspeksi dimensi internal bagian presisi di industri dan laboratorium.

Features

Ergonomic pistol grip

Pegangan nyaman untuk pengukuran berulang dan stabil.

Built-in Bluetooth & proximity output

Mengirim data pengukuran nirkabel dan kabel ke PC/SPC.

IP67-rated electronics

Elektronik tahan debu dan cipratan untuk penggunaan workshop.

Wide measurement range

Jangkauan 2–300 mm mencakup lubang kecil sampai besar.

Self-centring heads & high resolution

Kepala otomatis sentris dan resolusi akurat 0.001 mm.

Specification

Prouct Code	Range (mm)	Accuracy (mm)	Depth (mm)	Setting Ring (mm)	Price
XTH1M-BT	2-2.5	0.004	9	2.50	POA
XTH2M-BT	2.5-3	0.004	9	2.50	POA
XTH3M-BT	3-4	0.004	12	4.00	POA
XTH4M-BT	4-5	0.004	18	4.00	POA
XTH5M-BT	5-6	0.004	18	5.00	POA
XTH6M-BT	6-8	0.004	58	8.00	POA
XTH8M-BT	8-10	0.004	58	8.00	POA
XTH10M-BT	10-12.5	0.004	58	12.50	POA
XTH12M-BT	12.5-16	0.004	62	12.50	POA
XTH16M-BT	16-20	0.004	62	20.00	POA
XTH20M-BT	20-25	0.004	66	20.00	POA
XTH25M-BT	25-35	0.004	66	35.00	POA
XTH35M-BT	35-50	0.004	80	35.00	POA
XTH50M-BT	50-65	0.005	80	65.00	POA
XTH65M-BT	65-80	0.005	80	65.00	POA
XTH80M-BT	80-100	0.005	100	80.00	POA
XTH100M-BT	100-125	0.006	115	125.00	POA
XTH125M-BT	125-150	0.006	115	125.00	POA
XTH150M-BT	150-175	0.007	115	175.00	POA
XTH175M-BT	175-200	0.007	115	175.00	POA
XTH200M-BT	200-225	0.008	118	225.00	POA
XTH225M-BT	225-250	0.008	118	225.00	POA
XTH250M-BT	250-275	0.009	118	275.00	POA
XTH275M-BT	275-300	0.009	118	275.00	POA

Prouct Code	Range (mm)	Accuracy (mm)	Depth (mm)	Setting Ring (mm)	Price
XTH100M-BT	100-125	0.006	115	125.00	POA
XTH10M-BT	10-12.5	0.004	58	12.50	POA
XTH125M-BT	125-150	0.006	115	125.00	POA
XTH12M-BT	12.5-16	0.004	62	12.50	POA
XTH150M-BT	150-175	0.007	115	175.00	POA
XTH16M-BT	16-20	0.004	62	20.00	POA
XTH175M-BT	175-200	0.007	115	175.00	POA
XTH1M-BT	2-2.5	0.004	9	2.50	POA
XTH200M-BT	200-225	0.008	118	225.00	POA
XTH20M-BT	20-25	0.004	66	20.00	POA
XTH225M-BT	225-250	0.008	118	225.00	POA
XTH250M-BT	250-275	0.009	118	275.00	POA
XTH25M-BT	25-35	0.004	66	35.00	POA
XTH275M-BT	275-300	0.009	118	275.00	POA
XTH2M-BT	2.5-3	0.004	9	2.50	POA
XTH35M-BT	35-50	0.004	80	35.00	POA
XTH3M-BT	3-4	0.004	12	4.00	POA
XTH4M-BT	4-5	0.004	18	4.00	POA
XTH50M-BT	50-65	0.005	80	65.00	POA
XTH5M-BT	5-6	0.004	18	5.00	POA
XTH65M-BT	65-80	0.005	80	65.00	POA
XTH6M-BT	6-8	0.004	58	8.00	POA
XTH80M-BT	80-100	0.005	100	80.00	POA
XTH8M-BT	8-10	0.004	58	8.00	POA
