FTS-X memberikan kemudahan dalam pengujian QC atau lab: sistem siap pakai untuk pengujian tarik/kompresi, menawarkan data output, dan kompatibel untuk berbagai sampel. Cocok untuk pengujian material, komponen, atau produk jadi dalam produksi atau penelitian.
Force Gauges FTS-X Shimpo
Dengan FTS-X, Anda mendapatkan kontrol gaya push-pull dalam satu paket. Sistem ini mendukung pengujian repetitif dan dokumentasi data, menjadikannya solusi efisien bagi manufaktur, engineering, maupun quality assurance.
Features
Overview
| Spesifikasi | Detail / Keterangan |
|---|---|
| Tipe | Force Test System (gauge + test stand) |
| Output Data | USB data output (kompatibel PC) |
| Fungsi Gaya | Push (compression) & Pull (tension) / gaya tekan & tarik |
| Rangkaian Kapasitas | Tersedia dalam beberapa rentang kekuatan (tergantung varian stand/gauge) — cocok untuk pengujian ringan hingga menengah. |
| Kemudahan Instalasi | Sistem plug-and-play: gauge + stand + output data => siap digunakan di laboratorium / lini produksi. |
| Aplikasi | QC produksi, pengujian material/komponen, uji tarik/tekan, kontrol kualitas, R&D engineering. |
Specifications

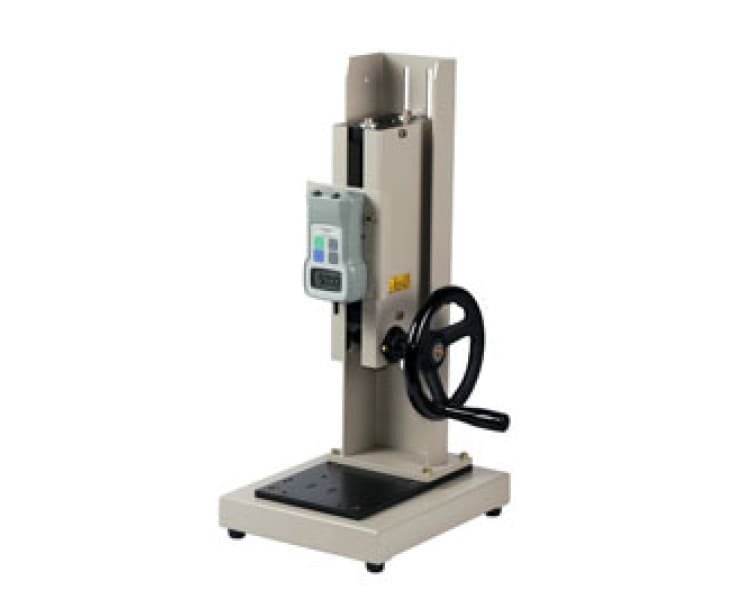

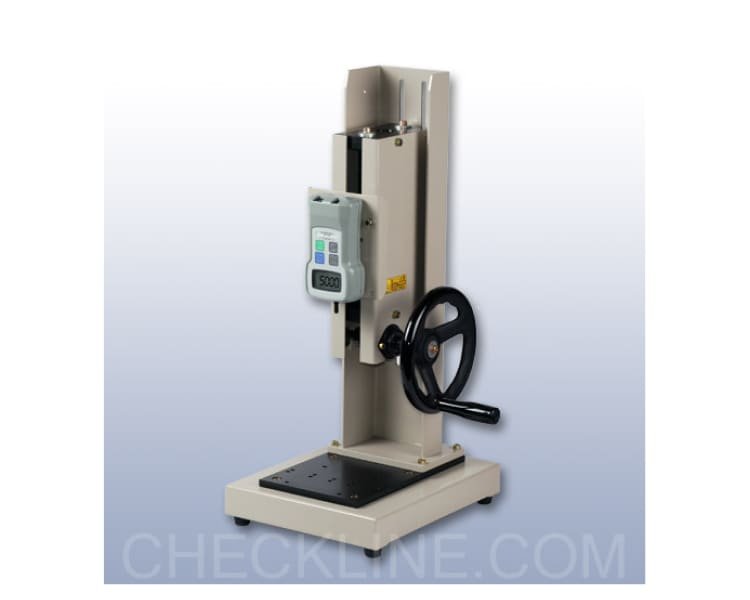

| Stroke | 5.9″ (150 mm) |
| Travel Rate | 3 mm/wheel turn (approximately) |
| Measuring Modes | Realtime, Compression Peak, Tension Peak |
| Display Update Rate | User Selectable: 1, 2, 3, 5, 10, 20 times per second |
| Sampling Rate | 1000 times per second (1000Hz/1KHz) |
| Accuracy | ± 0.2% F.S. |
| Temperature Drift | Gain : ± 0.01% LOAD / Zero : ±0.01% / R.C. / Drift of zero point can be cancelled with tracking function. |

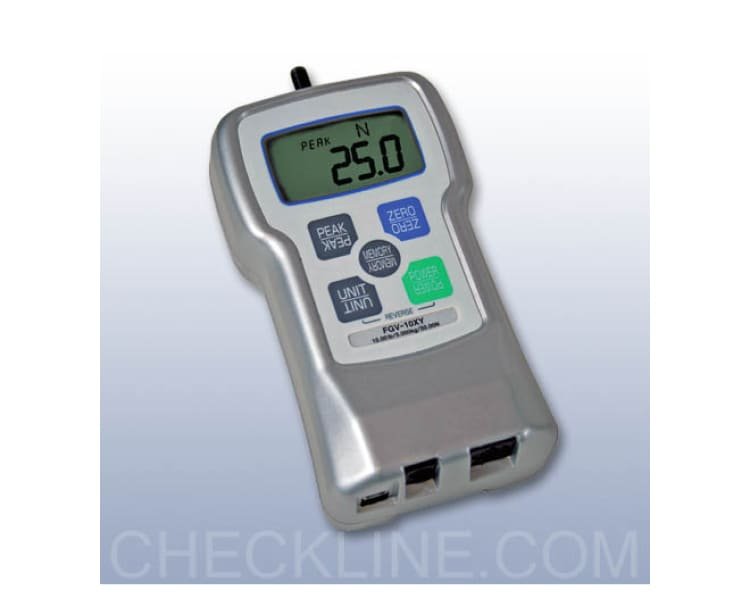

| Display | Main display: 4-digits 12mm high, Reversible Units display: 3-digits 7mm high Other display: “LO BAT”(Low Battery Voltage), “BAT”(Battery Charging), “OVR”(Overload), “Peak”(Peak Hold) |
| Overload | 200% of Full Scale |
| Tracking | User Selectable (ON/OFF) |
| USB Output | Allows communication between FGV-XY and Windows PC Software with ToriemonUSB via USB cable(included). |
| RS-232C Output | Allows communication between the FGV-XY and RS-232C devices. RS-232C cable is an optional accessory. |
| Analog Output | ± 1V, Accuracy is ± 50mV through a 12 bit D/A. ZERO affects this output, and is updated at 1000 times/second. Load is >10k Ohms |
| Overload/Comparator Output | Open-collector output (Max DC30V/5mA). |
| Power | Rechargeable Nickel hydride battery or AC adapter/charger. Usable while charging. |
| Operating Time | Approximately 8 hours after a full charge. Charging Time: 16 Hours Max. |
| Auto Power Off | Default is 10 minutes. Can be disbaled. Automatically disabled when connected to AC adapter. |
| Memory function | Continuous memory: 1000 data points, Single memory: 100 data points, Standard memory: 50 data points Statistics functions (max, minimum, peak, average, standard deviation) |
| Comparator function | User Selectable: HI and LO |
| Temperature range | 0 ~ 40 °C (-32 ~ 104 °F) |
| Humidity range | 35 ~ 85% RH |
| Dimensions | 147mm (L)x 75mm (W) x 38mm(H) |
| Weight | Approx. 34 lbs |
| Accessories(Included) | AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable |
| Application Software | Application software (USB version): Available at www.shimpoinst.com/software for free. |
| Warranty | 1 Year |
