Indikator ini dibekali Smart Inductive System (SIS) untuk otomatis wake/sleep, serta fungsi lengkap seperti MIN/MAX/DELTA, TOL, PRESET, faktor, auto off, dan output data Power & Proximity ke USB/RS232, tanpa perlu baterai saat terhubung kabel.
Digital Indicator S_DIAL Work Advanced Sylvac
Dirancang untuk penggunaan di otomotif, elektronik, aeronautika, pengepakan, alat mesin, dan alat medis, indikator ini ideal untuk inspeksi dimensi komponen dan pengukuran deviasi kecil dalam lini produksi maupun lab metrologi.
Features
Overview
| 805-5201 | 805-5301 | 805-5401 | 805-5501 | 805-5601 | 805-5621 | |
| EAN | 7640125697483 | 7640125716368 | 7640125697513 | 7640125716344 | 7640125697544 | 7640125697551 |
| Measuring range (mm) | 12.5 | 25 | 50 | |||
| Resolution (mm) | 0.01 | 0.001 | 0.01 | 0.001 | 0.01 | 0.001 |
| Max. Error fe (µm) | 10 ¹ | 3 | 10 ¹ | 4 | 20 ¹ | 5 |
| Repeatability (µm) | 2 | |||||
| IP rating | IP54 | |||||

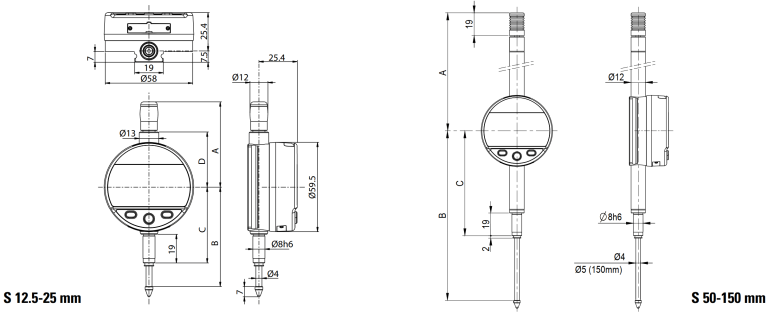

| A (mm) | 56.7 | 69.4 | 121 | |||
| B (mm) | 66.1 | 78.5 | 142 | |||
| C (mm) | 50.5 | 50.5 | 88 | |||
| D (mm) | 36.6 | 49.4 | – | |||
| Output data | USB / RS232 | |||||
| Programmable by PC | ⬤ | |||||
| Standard functions (customized by PC) | mm/inch, ref I/II, preset (max 999.999) min/max/delta, toleances, resolution, direction of measurement, multiplication factor, automatic or manual switch off, key lock | |||||
| 805-5641 | 805-5661 | 805-5671 | 805-5681 | |
| EAN | 7640125697575 | 7640125697582 | 7640125697599 | 7640125697605 |
| Measuring range (mm) | 100 | 150 | ||
| Resolution (mm) | 0.01 | 0.001 | 0.01 | 0.001 |
| Max. Error fe (µm) | 20 ¹ | 6 | 20 ¹ | 10 |
| Repeatability (µm) | 2 | |||
| IP rating | IP54 | |||
| A (mm) | 172 | 224 | ||
| B (mm) | 244 | 349 | ||
| C (mm) | 139 | 193 | ||
| D (mm) | – | – | ||
| Output data | USB / RS232 | |||
| Programmable by PC | ⬤ | |||
| Standard functions (customized by PC) | mm/inch, ref I/II, preset (max 999.999) min/max/delta, toleances, resolution, direction of measurement, multiplication factor, automatic or manual switch off, key lock | |||
| Measuring force | 12.5 | 25 | 50 | 100 | 150 |
| Standard (N) | 0.65 – 0.9 | 0.65 – 1.15 | 1.1 – 2.6 | 1.8 – 3.8 | 2.6 – 5.7 |
| Low ² (N) | 0.4 – 0.55 | 0.45 – 0.9 | – | – | – |
| High ² (N) | 1.0 – 1.6 | 0.9 – 1.8 | – | – | – |
