Alat ini memungkinkan pengukuran pelapis tipis hingga tebal pada substrat non-logam secara cepat dan presisi. Dengan berbagai pilihan probe (B, C, D), konektivitas USB, WiFi, dan Bluetooth, PosiTector 200 mendukung dokumentasi data otomatis, mempermudah kontrol kualitas pelapis di industri, konstruksi, dan penelitian material.

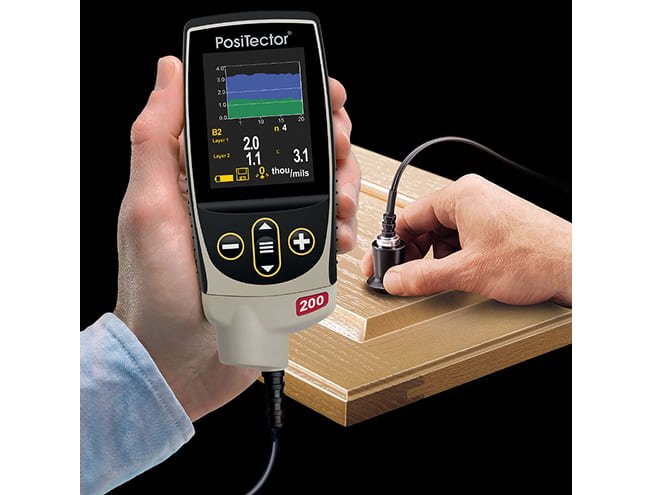

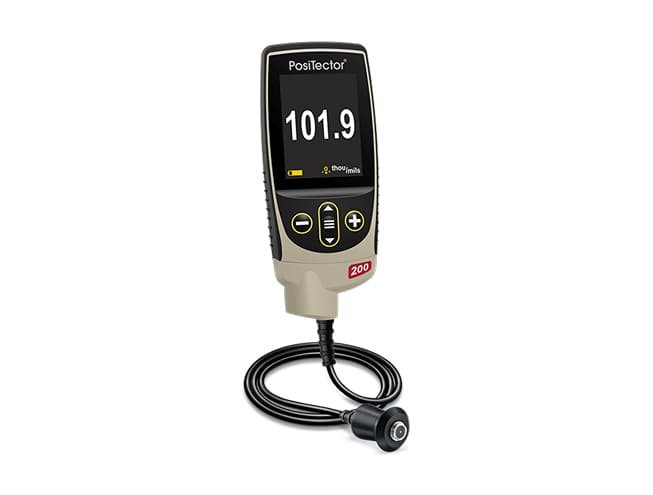

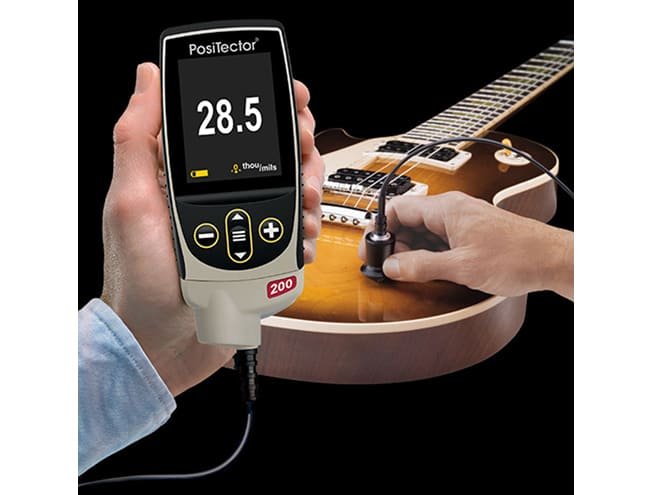

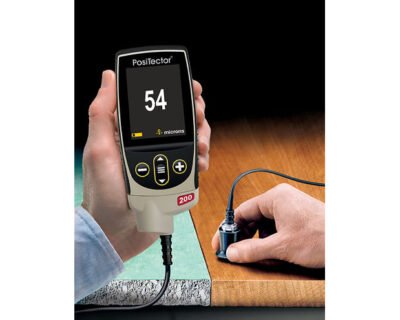

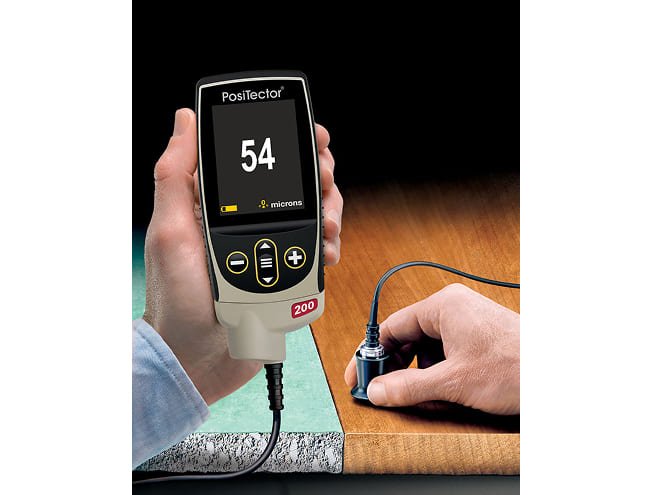

DeFelsko PosiTector 200 Coating Thickness Gauge for Non-Metal Substrates
DeFelsko PosiTector 200 dirancang untuk pengukuran nondestruktif lapisan pelindung pada substrat non-logam. Layar warna 2,8 inci menampilkan hasil instan, alat tahan air dan debu (IP65), serta mendukung berbagai standar internasional. Ringan dan portabel, perangkat ini ideal untuk aplikasi lapangan maupun laboratorium, memastikan inspeksi pelapis yang akurat.
Features
Overview
| Model | Application | Measurement Range | Accuracy | Additional Notes |
|---|---|---|---|---|
| 200 B1 | Polymer coatings on wood, plastic, etc. | 13 to 1,000 μm / 0.5 to 40 mils | ±(2 μm + 3 % of reading) / ±(0.1 mils + 3 %) | Certified standard: STDA3 |
| 200 C1 | Coatings on concrete, fiberglass, etc. | 50 to 3,800 μm / 2 to 150 mils | ±(2 μm + 3 % of reading) / ±(0.1 mils + 3 %) | Certified standard: STDP6 |
| 200 D1 | Thick, soft coatings (polyurea, asphaltic neoprene) | 50 to 7,600 μm / 2 to 300 mils | ±(20 μm + 3 % of reading) / ±(1 mil + 3 %) | Certified standard: STDP1 |
| 200 B3 (Advanced) | Polymer coatings (multi-layer measurement) | Same total range; minimum layer ≈ 13 μm (0.5 mil) | Same base accuracy | Supports individual layer thickness; advanced model |
| 200 C3 (Advanced) | Coatings on concrete/fiberglass (multi-layer) | Same total; min layer ≈ 50 μm (2 mils) | Same base accuracy | Advanced model for multiple layers over concrete |
| 200 D3 (Advanced) | Thick, soft multi-layer coatings | Same total; min layer ≈ 500 μm (20 mils) | Same base accuracy | Best for very thick, soft coatings |
