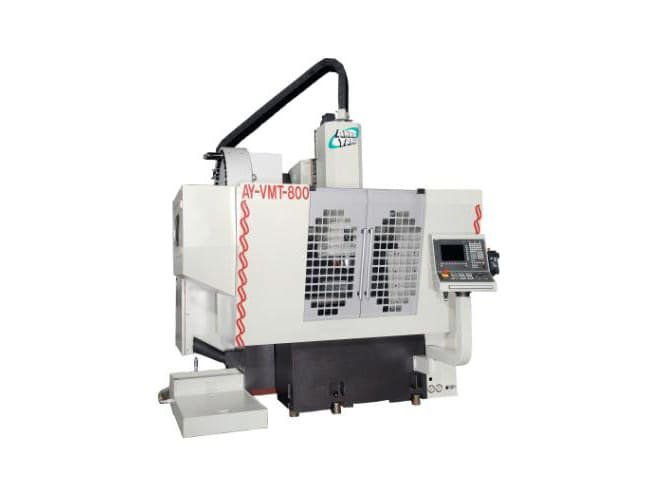

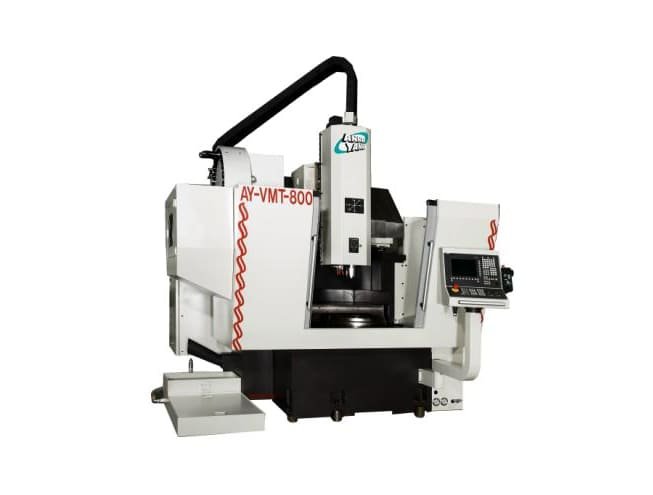

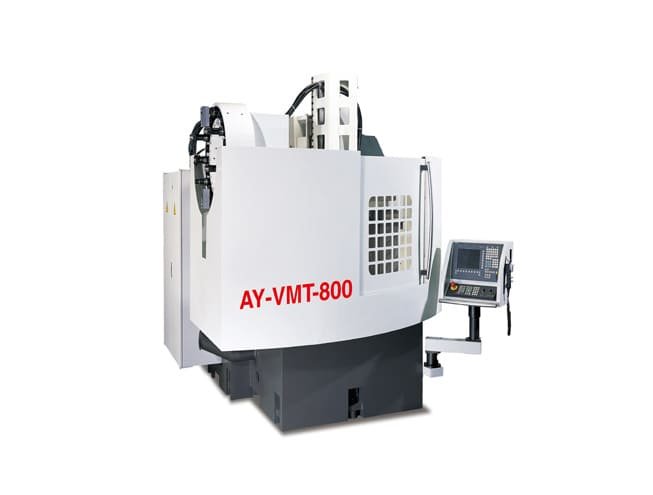

Annn Yang Vertical Milling & Turning Machine Center AY-VMT-600~800
Seri AY‑VMT‑600/800 menggabungkan pemrosesan milling vertikal dan turning dalam satu unit, memungkinkan pengerjaan satu set‑up tanpa pemindahan benda kerja. Struktur vertikal dengan sumbu X/Y/Z dan spindle turning membuatnya ideal untuk komponen ber‑diameter besar dan bentuk kompleks.
Dengan meja kerja hingga 1100 × 600 mm dan travel X hingga 800 mm (model 800), mesin ini mampu menangani beban hingga 1000 kg serta turning kapasitas Ø hingga 800 mm. Efisien untuk produksi massal maupun variasi tinggi.
Annn Yang Vertical Milling & Turning Machine Center AY-VMT-600~800
Ditenagai spindle milling hingga 12 000 rpm (model 600) atau hingga 20 000 rpm (opsi model), serta spindle turning dengan ukuran A2‑8/A2‑11 dan mekanisme gearbox presisi — menjamin kecepatan, akurasi, dan kekakuan untuk material berat dan ukuran besar.
Features
Overview
| Specification | AY-VMT-600 | AY-VMT-800 |
|---|---|---|
| Table Working Surface | 900 × 550 mm | 1100 × 600 mm |
| T-slot (size × number × pitch) | 18 × 4 × P100 | 18 × 5 × P100 |
| Max Table Load | 800 kg | 1000 kg |
| X-Axis Travel | 600 mm | 800 mm |
| Y-Axis Travel | 500 mm | 500 mm |
| Z-Axis Travel (with table / with chuck) | 650 mm / 530 mm | 650 mm / 530 mm |
| Distance Spindle End to Table | 120 mm | 120 mm |
| Turning Capacity (Max Swing / Max Cutting Diameter) | 600 mm | 800 mm |
| Max Cutting Length (Turning) | 530 mm | 530 mm |
| Turning Spindle Nose | A2-8 | A2-8 (or A2-11 in some configs) |
| Spindle Speed (Turning) | 2000 rpm | 2000 rpm |
| Milling Spindle Nose / Taper | HSK-63A | HSK-63A |
| Milling Spindle Speed | 12000 rpm | Options up to 20000 rpm in some versions |
| Bed Way Type / Depth / Width | 45 linear guide ways; depth 70 mm in X/Y/Z; width varies (e.g. X WIDTH 600-650 mm etc.) | |
| Feed / Rapid Travel (X, Y, Z) | Rapid: 30 m/min both X/Y and Z | Same |
| Cutting Feed Rate | 1 ~ 8000 mm/min | Same range |
| ATC Tool Capacity | 24 + 1 tools | Same |
| Max Tool Diameter | 90 mm | Same |
| Max Tool Length | 300 mm | 300 mm |
| Max Tool Weight | 10 kg | Same |
| Motors (X / Y / Z Axes) | X: 3.3 kW, 16 Nm; Y: 4.87 kW, 27 Nm; Z: 4.87 kW, 27 Nm | Same proportions |
| Milling Spindle Motor Power | 7.5-11 kW (48 Nm), depending on config | Same or variant with higher rpm options |
| Turning Spindle Motor Power | 15 / 20.5 kW, 95.5 Nm | Same scale |
| Oil Cooler / Lubrication / Coolant Pumps | 1 HP oil cooler; 100 W lubrication pump; 1 HP coolant pump; air cylinder 6 kg/cm² | Same layout |
| Machine Footprint Size (L × W × H) | 2600 × 2200 × 3000 mm | 2800 × 2300 × 3200 mm |
| Approx. Net Weight | 9000 kg | 11000 kg |
