Designed for mid to large parts, the AY-VM-800 to 1000 combines generous X–Y–Z travels with heavy load capability and high spindle speed. Its advanced control, rigid guideways, and automatic tool changer support versatile machining of molds, aerospace components, or large workpieces requiring both speed and precision.

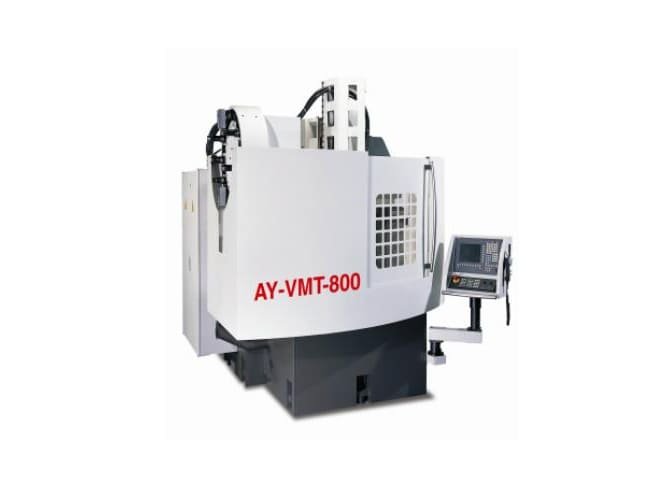

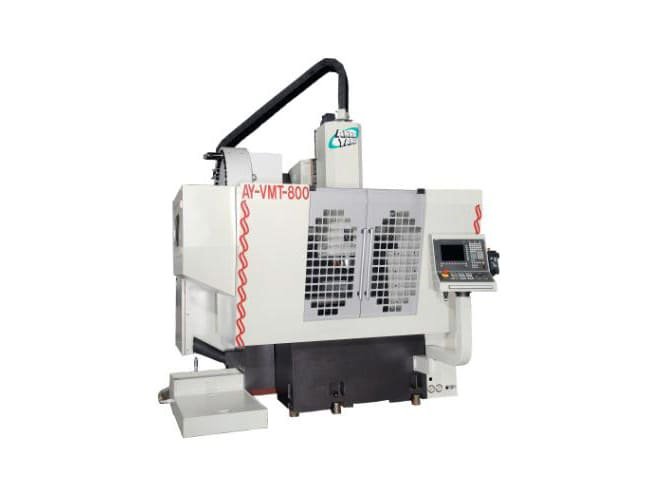

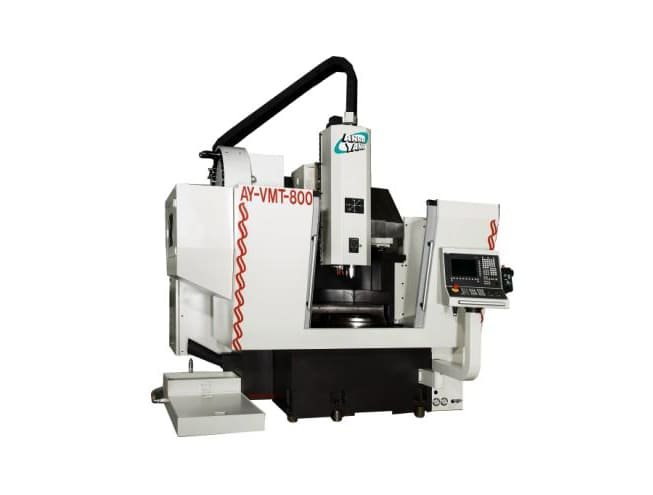

Annn Yang Vertical Machining Center AY-VM-800~1000
Annn Yang’s AY-VM vertical machining center is engineered for high throughput, stability, and accuracy. Offering HSK spindles, fast traverses, and a rugged bed design, it meets industrial standards for mold, die, and precision part manufacture. Ideal where both high volume and tight tolerance are needed.
Features
Overview
| Spec | AY-VM-800 | AY-VM-1000 |
|---|---|---|
| Table Surface (mm) | 1100 × 600 | 1350 × 650 |
| T-Slot (size × number × pitch) | 18 × 5 × P100 | 18 × 5 × P100 |
| Max Table Load | 1000 kg | 1200 kg |
| Travel (X × Y × Z) | 800 × 500 × 530 mm | 800 × 500 × 650 mm |
| Spindle to Table Distance | 120 mm | 120 mm |
| Max Swing / Cutting Diameter | 800 mm | 1000 mm |
| Spindle Nose / Taper | HSK-63A / HSK-E40 | HSK-63A / HSK-E40 |
| Spindle Speed | 24,000 / 30,000 rpm | 24,000 / 30,000 rpm |
| Rapid Travel | 30 m/min (X/Y/Z) | 30 m/min (X/Y/Z) |
| Cutting Feed Rate | 1 – 8,000 mm/min | 1 – 8,000 mm/min |
| Tool Magazine | 24 + 1 | 24 + 1 |
| Max Tool Diameter | 90 mm | 90 mm |
| Max Tool Length | 300 mm | 300 mm |
| Max Tool Weight | 10 kg | 10 kg |
| Motor (X / Y / Z) | 3.3 kW / 4.87 kW / 4.87 kW | Same |
| Machine Footprint (L × W × H) | 3700 × 2800 × 3700 mm | 3900 × 3100 × 3700 mm |
| Approx. Weight | 11,000 kg | 13,000 kg |
