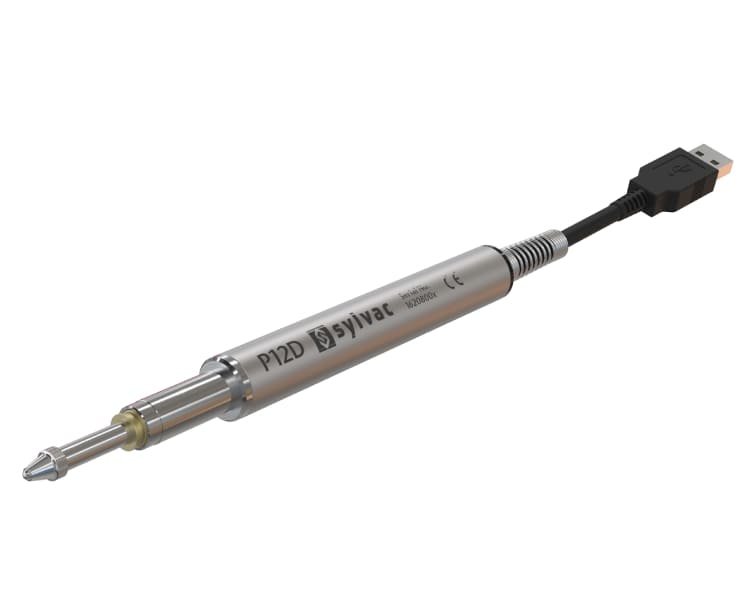

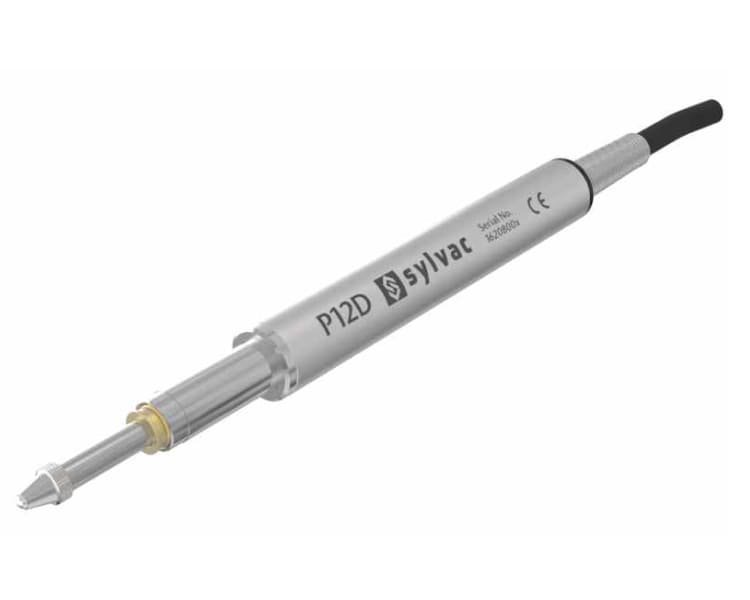

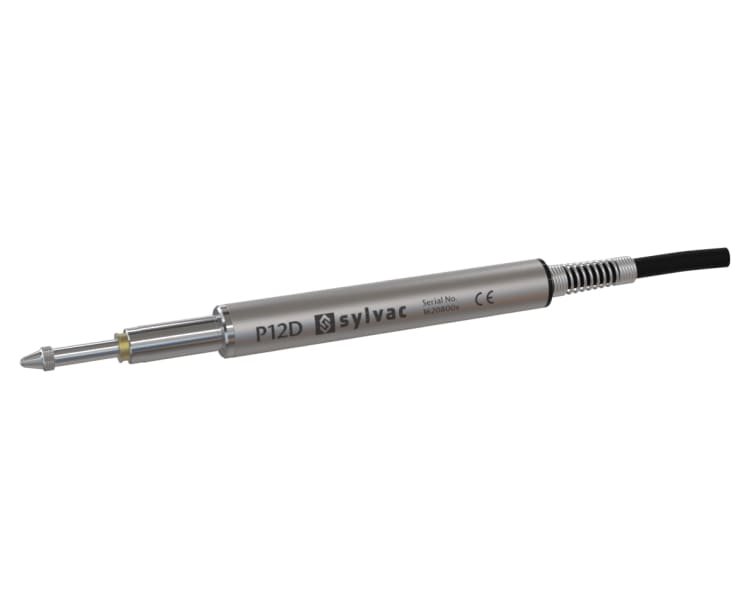

Model standar P12D menghadirkan sistem digital absolut dengan resolusi 0,1 µm dan repeatability stabil. Desain kokoh dengan ball bearing guide dan bodi stainless-steel cocok untuk pengukuran jarak, deviasi bentuk, dan inspeksi produksi pada komponen mekanik. USB, M8 atau Open output tersedia sesuai kebutuhan aplikasi.
Absolute Digital Measuring Probes P12D Sylvac
Varian Work atau dengan gaya konstan (CF) memberikan fleksibilitas di workshop dengan rentang 12,7 mm dan sistem absolut yang tak lagi perlu pairing dengan unit display. Ketahanan tinggi dan desain IP54 memastikan penggunaan sehari-hari dalam inspeksi dan pengendalian kualitas.
Features
Overview
| PRO | 801-1012 | 801-1018 | 801-1212 | 801-1218 |
| EAN | 7640125681352 | 7640125688771 | 7640125715552 | 7640125715668 |
| Resolution type | High resolution | |||
| Type | P12D HR USB | P12D HR USB CF ² | P12D HR M8 | P12D HR MB CF ² |
| Force ¹ (N) | 0.2 – 0.3 | 0.08 | 0.2 – 0.3 | 0.08 |
| Measuring range (mm) | 12.7 | |||
| Resolution (µm) | 0.01 | |||
| Max. Error (µm) | 0.6 | |||
| Repeatability (µm) | 0.08 | |||
| Nb measures/s | up to 100/s, according to configuration ³ | |||
| Output data | USB | M8 | ||
| Cable output | Straight | |||
| STANDARD | 801-2012 | 801-2017 | 801-2212 |
| EAN | 7640125681208 | 7640125681222 | 7640125712384 |
| Resolution type | Standard | ||
| Type | P12D USB | P12D USB LF ⁴ | P12D M8 |
| Force ¹ (N) | 0.4 – 0.8 | 0.2 – 0.3 | 0.4 – 0.8 |
| Measuring range (mm) | 12.7 | ||
| Resolution (µm) | 0.1 | ||
| Max. Error (µm) | 1 | ||
| Repeatability (µm) | 0.2 | ||
| Nb measures/s | up to 100/s, according to configuration ³ | ||
| Output data | USB | M8 | |
| Cable output | Straight | ||
| WORK | 801-0212 | 801-0012 |
| EAN | 7640125698800 | 7640125698817 |
| Resolution type | Standard | |
| Type | P12D WORK M8 | P12D WORK USB |
| Force ³ (N) | 0.4 – 0.8 | |
| Measuring range (mm) | 12.7 | |
| Resolution (µm) | 0.1 | |
| Max. Error (µm) | 1.8 | |
| Repeatability (µm) | 0.2 | |
| Nb measures/s | up to 100/s, according to configuration ³ | |
| Output data | M8 | USB |
| Cable output | Straight | |
| OPEN | 801-0412 |
| EAN | 7640125689280 |
| Resolution type | Standard |
| Type | P12D OPEN |
| Force ³ (N) | 0.4 – 0.8 |
| Measuring range (mm) | 12.7 |
| Resolution (µm) | 0.1 |
| Max. Error (µm) | 1.8 |
| Repeatability (µm) | 0.2 |
| Nb measures/s | up to 100/s, according to configuration ³ |
| Output data | OPEN |
| Cable output | Straight |
