TTC Series mendukung enam mode pengukuran — Track, Peak, First-Peak, Auto-Peak, Auto-First-Peak, dan Double-Peak — plus fitur pass/fail otomatis. Data torsi dapat disimpan (memory 1000 data) dan diekspor via USB / RS-232, memudahkan pelaporan QC.

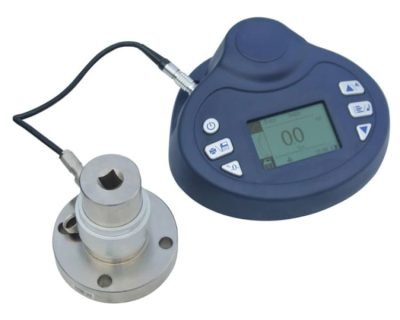

Torque Gauges and Test Stands TTC Shimpo

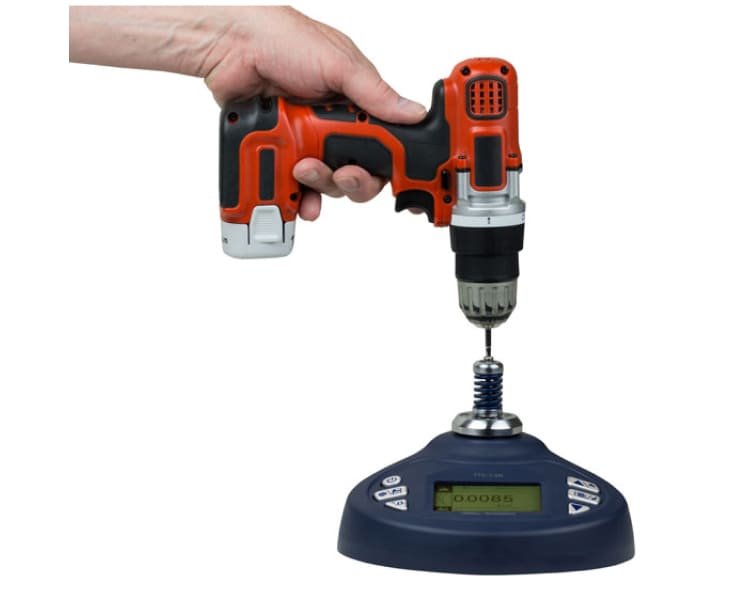

Kombinasi TTC dengan test-stand manual atau rotary (misalnya stand dari Shimpo) menjadikannya sistem lengkap untuk uji torsi terkontrol: baik alat manual (wrench, obeng) maupun power tool — menjamin konsistensi dan traceability dalam pengujian dan kalibrasi.
Features
Overview
| Spesifikasi | Nilai / Detail |
|---|---|
| Rentang torsi (tergantung model) | dari 2 N·m (TTC-I-2) sampai ±800 N·m (varian paling besar) |
| Akurasi | ± 0.3% dari reading (over 5–100% kapasitas) |
| Unit pengukuran | N·m, N·cm, in-lb, ft-lb, kg·cm — tergantung model |
| Modes pengukuran | Track, Peak, First Peak, Auto Peak, Auto First Peak, Double Peak, plus Preset / Pass-Fail |
| Output & Komunikasi | USB dan RS-232 standar untuk transfer data / printing |
| Memori internal | Menyimpan hingga 1000 data hasil uji |
| Power / Daya | Bisa menggunakan baterai internal rechargeable atau adaptor AC (100–240 V) |
| Display | Backlit / grafis dengan bar-graph, arah putaran (CW/CCW), dan ikon pass/fail |
| Alat pendukung / aksesori | Rundown adapter (untuk power tool), test-stand manual atau rotary stand kompatibel dari Shimpo |
| Aplikasi umum | Kalibrasi torque wrench & obeng, QC produksi, uji torsi power-tool, maintenance alat, pengujian otomatis/manual. |
Specifications
| Measuring Range | 0.5% – 100% capacity |
| Accuracy | ± 0.3 % (5 to 100% capacity) |
| Units of Measure | N-cm, N-m, in-lb, ft-lb, kg-cm (depending on range) |
| Measure Modes | Track, Peak, First Peak, Auto Peak, Auto First Peak & Double Peak |
| Tool Socket Size | TTC-2/5/10: 1/4″ & 1/2″ (6.3 & 12.5 mm) TTC-20/50/100/200: 3/8″ & 1/2″ (10 & 12.5 mm) TTC-500/800: 3/4″ (19 mm) |
| Overload Protection | 120% of Full Scale |
| Sampling Rate | 2000 Hz |
| Peak Capture Rate | 0.05 s |
| Display | 160* 128 Dot matrix backlit LCD |
| Display Update Rate | 10 times/sec |
| Memory | 1000 data |
| Set Point | Programmable High and Low Limits |
| Battery Indication | Battery icon flashes when low |
| Charger/Adapter | Universal USB charger, input 100 – 240 V ac 50/60 Hz |
| Operating Temperature | 14 to 104°F (-10 to 40°C) |
| Humidity Limit | 20 – 80% RH |
| Power | 3.6 V dc 1600 mAH Ni-MH |
| Battery Life | Approx. 16 Hours continuous on full charge |
| Output | USB, serial port RS-232, High and low limit NPN |
| Dimensions | Display TTC-I: 7.75 x 7 x 3.3″ (197 x 180 x 83 mm) Display TTC-E: 7.75 x 7 x 3″ (197 x 180 x 75 mm) External Sensor (50, 100 N-m): 4.3 x 3.3″(110 x 83 mm) External Sensor (200, 500 & 800 N-m): 4 x 3.8″ (100 x 98 mm) |
| Product Weight | TTC-I: 3.3 lb (1.5 kg) TTC-E Display: 2.6 lb (1.2 kg) TTC-E-200/500/800 External Sensor: 4.4 lb (2 kg) |
| Package Weight | TTC-I: 6.5 lb (3 kg) TTC-E-200/500/800: 10.2 lb (4.6 kg) |
| Warranty | 1-Year |
| Certification | CE |
| Included Accessories | USB cable, charger adapter, cal. cert. printer cable, square driver adapter connector (Ranges to 200 N-m only) |
