Dengan window marking 160×100 mm dan auto-axis Z yang memudahkan penandaan benda kerja berbeda ukuran, e10 c153 cocok untuk produksi batch maupun kerja satuan dengan hasil konsisten.

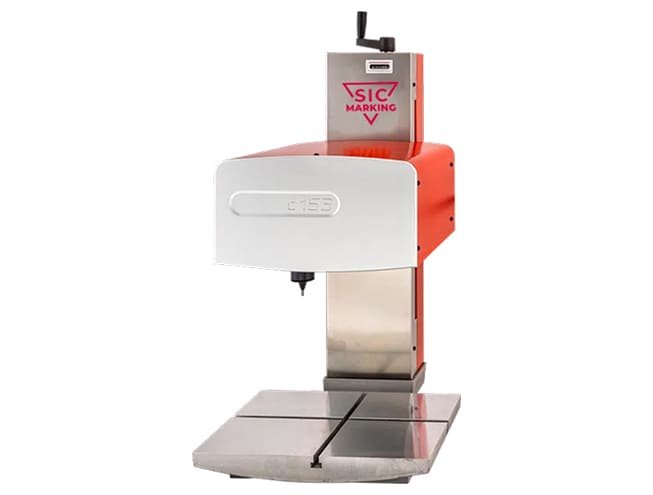

SIC Marking e10 c153 Dot Peen Marking Machine
Mesin dilengkapi software manajemen file (edit marking files, history & anti-duplicate), keyboard QWERTY, dan bodi kompak — memungkinkan integrasi ke workstation tanpa memakan ruang besar.
Features
Overview
| Specification | Details |
|---|---|
| Marking Window (X × Y) | 160 × 100 mm |
| Machine Dimensions (H × W × D) | 704 mm × 385 mm × 350 mm |
| Weight (Machine) | 28 kg |
| Stylus | Tungsten carbide, 60 mm |
| Column Travel (Stroke) | Max 270 mm |
| Base Type | Cast aluminum with integral counter |
| Lighting | Integrated LED |
| Controller Dimensions | 322 mm × 380 mm × 112 mm |
| Controller Weight | 5 kg |
| Display | Color screen, 480 × 272 px |
| Keyboard | QWERTY, IP40 protected |
| Power | 300 W, 90–240 V AC, 50–60 Hz |
| Controlled Axes | 2 standard (upgradable to 3rd/4th) |
| Marking File Capacity | > 2,000 files; 7,110 KB memory |

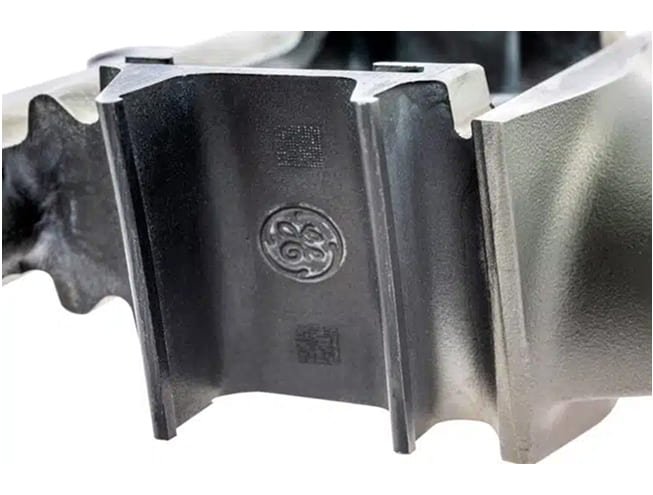

| Marking Modes | Text, logos, DataMatrix (up to 348 chars, 48×48) |
| Marking Speed | Up to 5 characters/sec |
| Character Size Range | 0.1 mm to 99 mm |
| Impact Force Levels | 9 adjustable levels |
| Marking Depth | Up to 0.5 mm |
| Dot Resolution | Minimum 0.05 mm |
| Security | 3 password levels, history logging |
| Connectivity Ports | RS232, RS422, RS485, USB ×2; optional Profibus, Ethernet TCP/IP |
| I/O | 8 inputs / 8 outputs |
| Optional Accessories | Rotary (D-axis), plate support, pedal, communication cards, tag feeder |
