Shimpo PM-RTD menyediakan pengukuran suhu dengan input RTD (misalnya Pt100, Ni120, Cu10), dengan resolusi yang dapat dipilih (1°, 0.1°, 0.01°). Power universal (AC/DC) dan pilihan komunikasi RS-232, RS-485, atau USB memudahkan integrasi dalam sistem otomasi industri.
Process Panel Meters PM-THC & PM-RTD Temperature Meters Shimpo
Model PM-RTD-100C2 memadukan input RTD dengan suplai 10–48 V DC atau 12–34 V AC, dan komunikasi RS-485. Cocok untuk lingkungan dengan tegangan rendah dan kebutuhan pemantauan jarak jauh, sambil tetap menawarkan akurasi tinggi dan display panel yang jelas.
Features
Specifications
| Parameter | Nilai / Spesifikasi |
|---|---|
| Display Range | –99999 sampai 99999 |
| Akurasi (PM-THC) | ±0.01% dari span penuh ± kesalahan konformitas |
| Resolusi Suhu | 1°, 0.1°, 0.01° (pilihan) |
| Kecepatan Pembacaan | Hingga 60 konversi/s |
| Opsi Relay | 2 × relay mekanik (8 A), atau SSR (120 mA) |
| Analog Output | 4–20 mA, 0–20 mA, 0–10 V, ±10 V (pilihan) |
| Komunikasi | RS-232, RS-485, USB (opsional) |
| Power Supply | 85–264 V AC / 95–300 V DC atau 10–48 V DC / 12–34 V AC |
| Suhu Operasi | 0 – 55°C (32 – 131°F) |

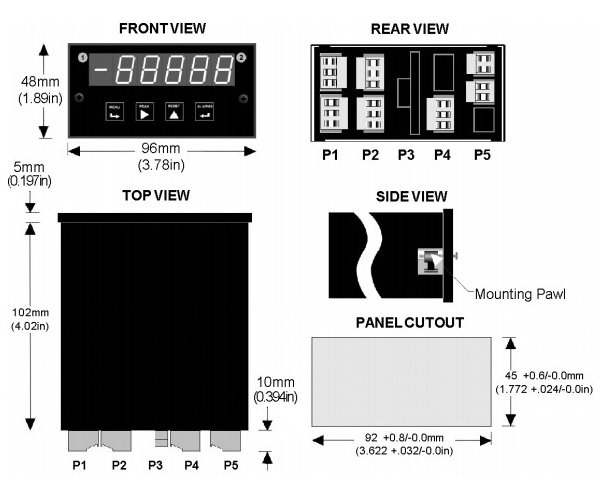

| Dimensi Panel | 1/8 DIN (48 × 96 mm), kedalaman 102 mm |
Ranges
| Power Option | Relay Output Option | Signal Output Option | Serial Comm. | |
|---|---|---|---|---|
| PM-RTD | 0 = 85-264 V ac or 95-300 V dc | R = Contact Relays – Two 8A Form C | A = 4-20 mA, 0-10 V, -10 to +10V | C1 = RS-232 |
| RTD Input | 1 = 12-34 V ac or 10-48 V dc | S = SSR Relays – Two 120 mA | 0 = No Output | C2 = RS-485 |
| 0 = No Output | C5 = USB | |||
| * Jumper Selectable | ||||
| Pt 100 Ω DIN, -202 to 850°C | ||||
| Pt 100 Ω DIN, -331 to 1562°F | ||||
| Pt 100 Ω ANSI, -202 to 631°C | ||||
| Pt 100 Ω ANSI, -331 to 1168°F | ||||
| Ni 120 Ω, -100 to 260°C | ||||
| Ni 120 Ω, -148 to 500°F | ||||
| Cu 10 Ω, -100 to +260°C | ||||
| Cu 10 Ω -148 to +500°F |
| PM-THC | 0 = 85-264 V ac or 95-300 V dc | R = Contact Relays – Two 8A Form C | A = 4-20 mA, 0-10 V, -10 to +10V | C1 = RS-232 |
| Thermocouple Input | 1 = 12-34 V ac or 10-48 V dc | S = SSR Relays – Two 120 mA | 0 = No Output | C2 = RS-485 |
| * Jumper Selectable | 0 = No Output | C5 = USB | ||
| Type J, -210 to 760°C | ||||
| Type J, -347 to 1400°F | ||||
| Type K, -244 to 1372°C | ||||
| Type K, -408 to 2501°F | ||||
| Type T, -257 to 400°C | ||||
| Type T, -430 to 752°F | ||||
| Type E, -240 to 1000°C | ||||
| Type E, -400 to 1830°F | ||||
| Type N, -245 to 1300°C | ||||
| Type N, -410 to 2370°F | ||||
| Type S, -46 to 1768°C | ||||
| Type S, -51 to 3214°F | ||||
| Type R, -45 to 1768°C | ||||
| Type R, -49 to 3213°F |
