Mesin EW‑150 Series menghadirkan pengujian kekerasan lengkap untuk berbagai material dengan skala Vickers, Knoop, dan Brinell, baik micro maupun macro. Dilengkapi sistem digital terintegrasi, microscope presisi, dan kemampuan konversi skala otomatis. Cocok untuk penelitian material, laboratorium industri, dan pengujian produksi, memberikan hasil konsisten, mudah dioperasikan, dan dokumentasi digital.

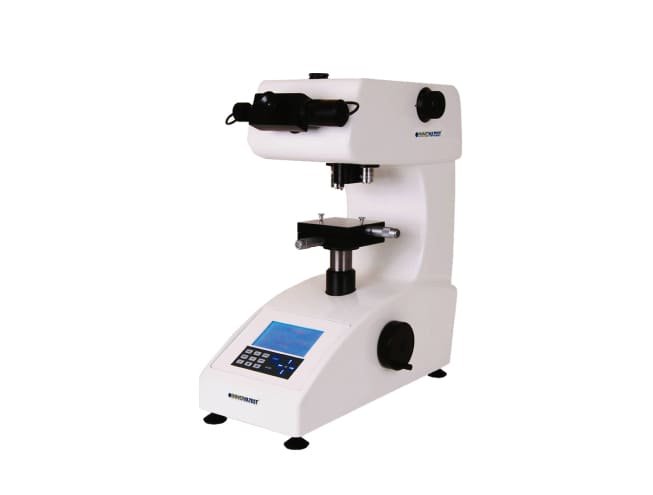

EW-150 Series Premium Multi-Scale Hardness Tester (Micro/Macro Vickers, Knoop & Brinell)
EW‑150 Series Premium Multi-Scale Hardness Tester menawarkan fleksibilitas tinggi untuk pengujian Micro/Macro Vickers, Knoop, dan Brinell. Mesin ini memiliki kontrol digital presisi, microscope optik dengan resolusi tinggi, dan fungsi penyimpanan serta analisis data. Dirancang untuk laboratorium modern dan pengendalian kualitas manufaktur, EW‑150 menjamin akurasi, kecepatan, dan kemudahan penggunaan.
Features
Overview
| Specification Item | Unit | EW-4000 Series Typical Values |
|---|---|---|
| Test Force / Load Range Variants | — | EW-4300: Vickers/Knoop 1-30 kgf; EW-4301: Brinell 1-31.25 kgf; EW-4302: Macro Vickers/Knoop 300 gf-30 kgf; EW-4303: Micro/Macro Vickers/Knoop 20 gf-30 kgf; EW-4304: Micro/Macro Vickers/Knoop/Brinell 20 gf-31.25 kgf; EW-4500 etc. up to 50-62.5 kgf. |
| Indenters | — | Vickers 136°, Knoop 172.5°×130°, Brinell 1 & 2.5 mm |
| Objectives | — | 5×, 10×, 20× standard; optional 40×, 60× |

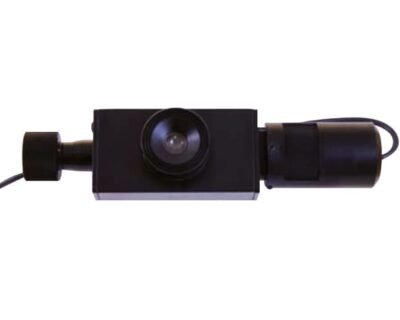

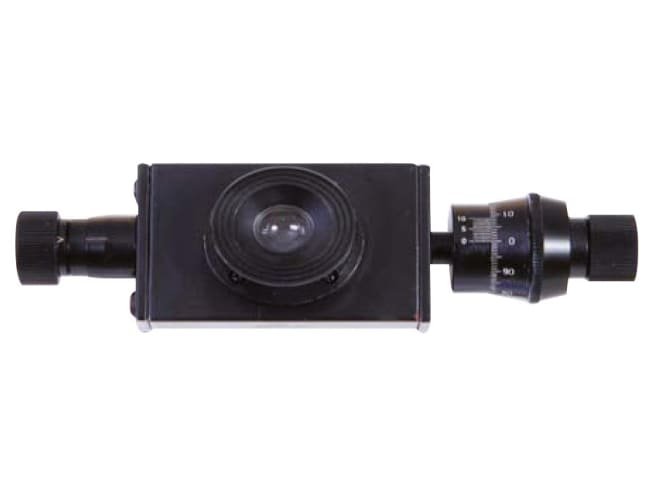

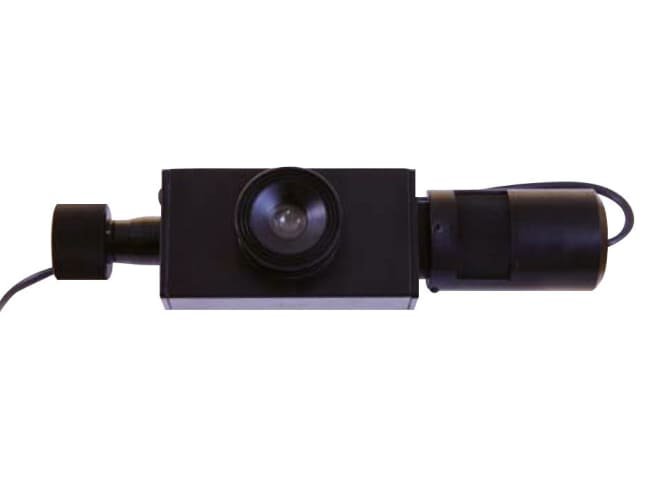

| Eyepiece | — | Electronic eyepiece microscope 15× magnification |
| Stage Options | — | Manual X-Y; Motorised X-Y; Motorised X-Y-Z; optional video CCD systems |
| Display / Output | — | Built-in thermal printer; RS-232 bidirectional; 5-digit hardness value; menu for scale, load, date/time etc. |
| Accuracy | — | < ±1 % for forces from about 100 gf to max; < ±1.5 % for forces below 100 gf. |
| Display Resolution | — | 0.1 units for HV, HK, HB |
| Dwell Time Setting | seconds | Default 10 s; user-defined 1-60 s |
| Capacity (Specimen Size) | mm | Vertical specimen height up to 160 mm; horizontal reach 135 mm from center. |
| Stage Travel | mm | Stage 100 × 100 mm travel 20 × 20 mm reading 0.01 mm |
| Light Source | — | Halogen 12 V, 30 W with dimmable control; green filter included |
| Operating Conditions | °C / %RH | 5-40 °C; Humidity 10-90 % non-condensing |
| Dimensions | mm | 220 × 540 × 650 mm |
| Weight | kg | 51 kg |
| Power Supply | — | 110/220 V, 50/60 Hz, single phase |
