Seri 8555‑Carbide‑35 memungkinkan pemesinan detil dan slot‑profiling pada komponen kecil dengan keandalan tinggi; konstruksi carbide memastikan ketahanan aus dan performa stabil pada kecepatan tinggi.

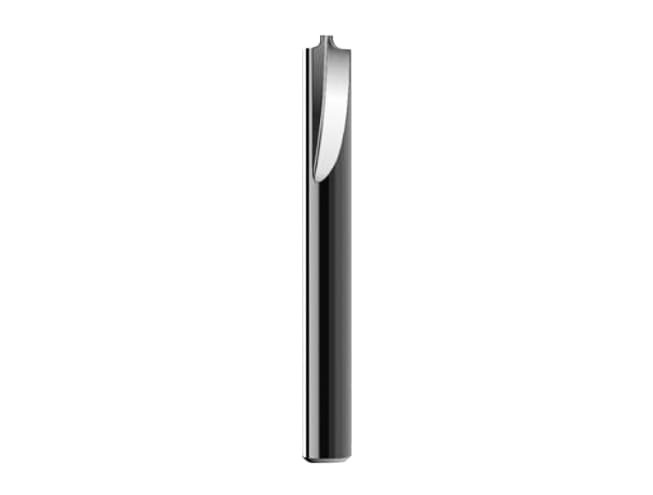

Miniature End Mills 8555-Carbide-35 Magafor
Dengan ukuran miniature dan grade “Carbide‑35”, end mill ini mengakomodasi aplikasi presisi seperti komponen elektronik, mold kecil atau bagian mekanik mikro, memungkinkan hasil halus dan toleransi ketat. The Magafor Miniature End Mills 8555-Carbide-35 also can be ordered with reduced neck series for machining inside smaller holes. Furthermore, Magafor micro toolings have specific design for each of your machining applications. Magafor styles, materials and lengths can also be custom ordered to meet varying application within specific machining technic.
Features
overview
| Item # | d1 Shank | d2 Shank | L Length | R |
|---|---|---|---|---|
| 8555010 | 0.8 | 3 | 50 | .0040″ |
| 8555015 | 0.8 | 3 | 50 | .0060″ |
| 8555020 | 0.8 | 3 | 50 | .0080″ |
| 8555025 | 1 | 3 | 50 | .0100″ |
| 8555030 | 1 | 3 | 50 | .0120″ |
| 8555040 | 1 | 3 | 50 | .0160″ |
| 8555050 | 1.5 | 4 | 50 | .0195″ |
| 8555060 | 1.5 | 4 | 50 | .0235″ |
| 8555070 | 1.5 | 4 | 50 | .0275″ |
| 8555075 | 1.5 | 4 | 50 | .0295″ |
| 8555080 | 1.5 | 4 | 50 | .0315″ |
| 8555090 | 1.5 | 4 | 50 | .0355″ |
| 8555100 | 1.5 | 4 | 50 | .0395″ |
| 8555125 | 2 | 6 | 50 | .0490″ |
| 8555150 | 2 | 6 | 50 | .0590″ |
| 8555175 | 2 | 6 | 50 | .0690″ |
| 8555200 | 2.5 | 8 | 50 | .0790″ |
| 8555225 | 2.5 | 8 | 50 | .0885″ |
| 8555250 | 2.5 | 8 | 50 | .0985″ |
| 8555300 | 3 | 10 | 55 | .1180″ |
| 8555400 | 3 | 12 | 63 | .1575″ |
