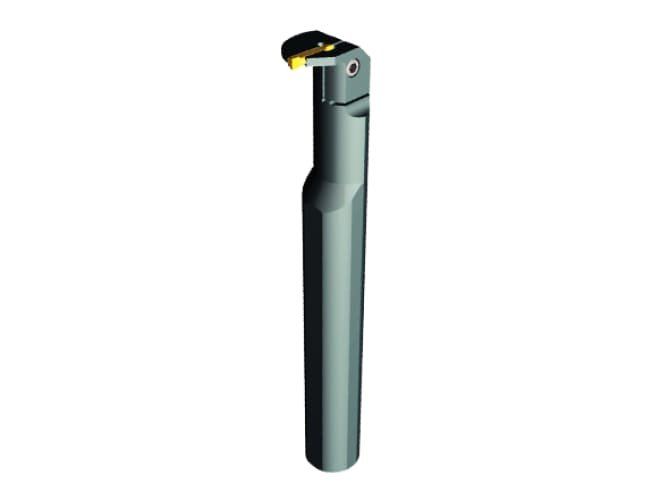

Manchester WMT Integral Turning Widia
Sistem integral turning Manchester WMT menyediakan sekali pakai untuk turning, grooving, dan cut-off—satu holder mampu menangani pengeboran OD dan ID dengan efisiensi tinggi. Desain dua sisi pemotong memungkinkan siklus kerja lebih cepat tanpa pergantian turret.
Dengan akurasi insert yang dijamin oleh sistem “double-V” positioning dan kekakuan holder tinggi, WMT menangani material cast iron, steel, dan stainless dengan hasil permukaan halus dan produktivitas hingga +180 %.
Manchester WMT Integral Turning Widia
WMT Integral Turning mengurangi jumlah tool holder dan setup dengan menawarkan satu sistem bagi operasi turning, facing dan grooving. Sering dipakai dalam produksi volume besar untuk meningkatkan repeatability dan mengurangi inventaris tooling.
Features
Spesification
| order number | catalog number | insert size | W | F | CD | D | D min | L1 | A | clamp screw | hex |
|---|---|---|---|---|---|---|---|---|---|---|---|
| right hand | |||||||||||
| 5423874 | A25RWMTER0316M | 3 | 3,00 | 26,0 | 16 | 25,00 | 41 | 200 | 6,40 | 619168 | 5 mm |
| 5423875 | A32SWMTER0319M | 3 | 3,00 | 29,0 | 19 | 32,00 | 47 | 250 | 6,40 | 619168 | 5 mm |
| 5423876 | A25RWMTER0416M | 4 | 4,00 | 26,0 | 16 | 25,00 | 41 | 200 | 6,40 | 619168 | 5 mm |
| 5423877 | A32SWMTER0419M | 4 | 4,00 | 29,0 | 19 | 32,00 | 47 | 250 | 6,40 | 619168 | 5 mm |
| 5423878 | A32SWMTER0519M | 5 | 5,00 | 29,0 | 19 | 32,00 | 47 | 250 | 6,40 | 619168 | 5 mm |
| 5423879 | A40TWMTER0522M | 5 | 5,00 | 32,0 | 22 | 40,00 | 54 | 300 | 6,40 | 619168 | 5 mm |
| 5423880 | A32SWMTER0619M | 6 | 6,00 | 29,0 | 19 | 32,00 | 47 | 250 | 6,40 | 619168 | 5 mm |
| 5423881 | A40TWMTER0622M | 6 | 6,00 | 31,8 | 22 | 40,00 | 54 | 300 | 6,40 | 619168 | 5 mm |
| left hand | |||||||||||
| 5423882 | A25RWMTEL0316M | 3 | 3,00 | 26,0 | 16 | 25,00 | 41 | 200 | 6,40 | 619168 | 5 mm |
| 5423883 | A32SWMTEL0319M | 3 | 3,00 | 29,0 | 19 | 32,00 | 47 | 250 | 6,40 | 619168 | 5 mm |
| 5423884 | A25RWMTEL0416M | 4 | 4,00 | 26,0 | 16 | 25,00 | 41 | 200 | 6,40 | 619168 | 5 mm |
| 5423885 | A32SWMTEL0419M | 4 | 4,00 | 29,0 | 19 | 32,00 | 47 | 250 | 6,40 | 619168 | 5 mm |
| 5423886 | A32SWMTEL0519M | 5 | 5,00 | 29,0 | 19 | 32,00 | 47 | 250 | 6,40 | 619168 | 5 mm |
| 5423887 | A40TWMTEL0522M | 5 | 5,00 | 32,0 | 22 | 40,00 | 54 | 300 | 6,40 | 619168 | 5 mm |
| 5423888 | A32SWMTEL0619M | 6 | 6,00 | 29,0 | 19 | 32,00 | 47 | 250 | 6,40 | 619168 | 5 mm |
| 5423889 | A40TWMTEL0622M | 6 | 6,00 | 31,8 | 22 | 40,00 | 54 | 300 | 6,40 | 619168 | 5 mm |
