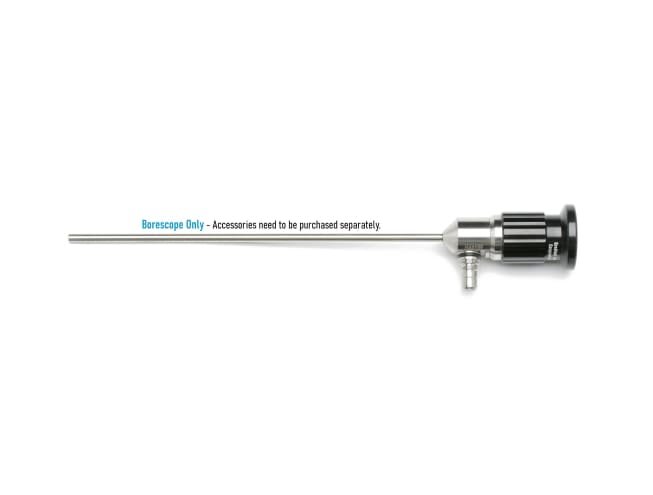

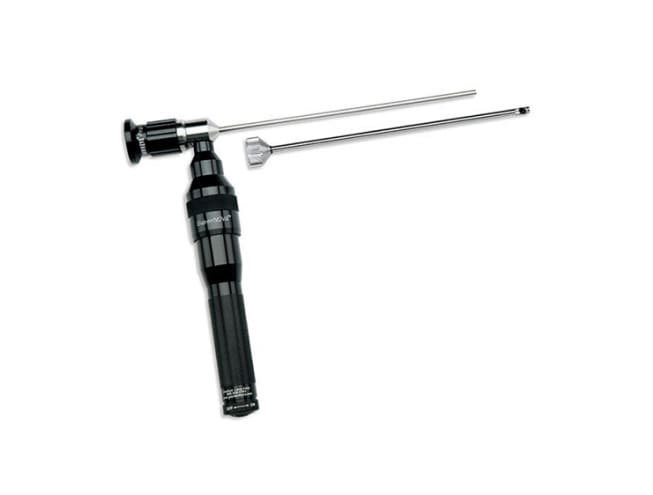

Pro Slim dirancang untuk penetrasi lubang mesin presisi, menyuguhkan bidang pandang 42° dan arah lihat 0°, yang bisa diperluas ke 90° melalui adaptor mirror tube. Kejernihan dan intensitas cahaya memungkinkan mendeteksi burr dan cacat permukaan.
Caliper S_CAL Evo Basic Sylvac

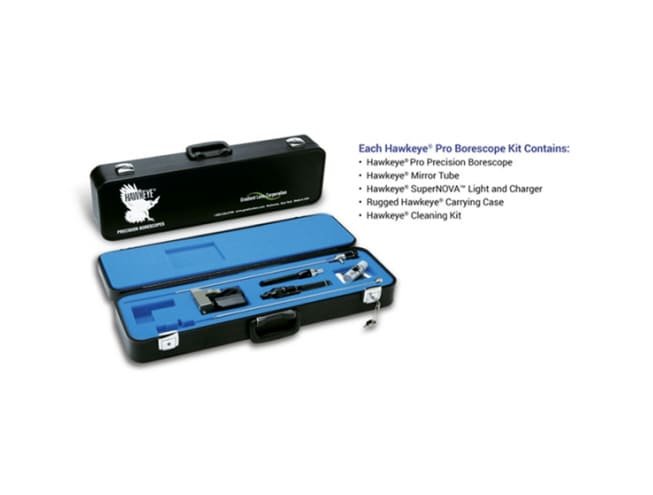

Dengan konstruksi stainless steel dan lensa multi-coated, Hawkeye Pro Slim menawarkan performa luar biasa di aplikasi inspeksi mesin, pengecoran, dan lubang silang. Kit lengkap tersedia termasuk lampu, mirror tube, sheath, dan perlengkapan pembersih.
Features
Overview
| Kategori | Item | Spesifikasi |
|---|---|---|
| Optics | Field-of-View | 42° |
| Direction-of-View | 0°, 90° (with Mirror Tube adaptor) | |
| Relay Optics | e2 endoGRINs® Glass Relay Lenses | |
| Magnification | Not fixed magnification (unlike microscopes) | |
| Mechanical / Construction | Length | 7″, 12″, 17″, 22″ |
| Diameter | Scope: 0.165″ (4.20 mm) With Mirror Tube: 0.188″ (4.80 mm) | |
| Lightpost | LightConcentrator™ ACMI configuration, Diameter 0.300″ | |
| Eyecup | Standard DIN, 32 mm diameter, with independent focusing ring | |
| Materials | Tube | 304 Stainless Steel |
| All Machined Parts | 303 Stainless Steel | |
| Eyecup & Focusing Ring | Aluminum, black anodized | |
| Front Window | AR coated optical glass | |
| Illumination Fiber | Optical glass | |
| Relay Optics | e2 endoGRINs® gradient index glass lenses | |
| Environmental | Temperature Range | -20° to 120°C |
| Note 1 | Custom models available for up to 300°C (contact sales) | |
| Note 2 | Not designed for <0°C, but some customers use in liquid nitrogen at 77K | |
| Pressure | Designed for ambient pressure. Successfully used up to 500 PSI and down to 10⁻⁶ Torr (operator risk). | |
| Chemical Resistance | Tube is watertight, resistant to most hydrocarbons (oils, gasoline, hydraulic fluid, jet fuel). Avoid acids & strong alkalis (will damage optical window). |
