Hawkeye Pro MicroFlex menyediakan akses inspeksi ekstrem di ruang paling mikro. Dengan diameter hanya 0,5 – 1,5 mm dan balutan selubung poliamida/polimer, boreskop ini menawarkan kualitas citra tinggi hingga 30.000 serat. Cocok untuk aplikasi medis, aerospace, dan manufaktur presisi di area terbatas.

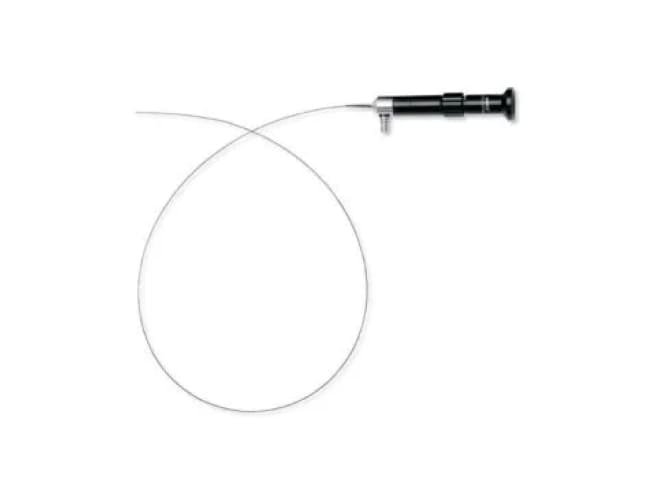

Hawkeye Pro MicroFlex Flexible Borescopes
Didesain untuk penetrasi kejalur mikro, Hawkeye Pro MicroFlex hadir dalam pilihan 0,5, 0,9, dan 1,5 mm. Resolusi serat 3.000 hingga 30.000 piksel menghasilkan tampilan tajam. Lensa fokus tetap dengan adaptor video memungkinkan rekaman pada permukaan internal yang sukar dijangkau.
Features
Overview
| Kategori | Spesifikasi |
|---|---|
| Optik | |
| Direction-of-View | 0° (pada semua model) |
| Piksel / Resolusi | 0.5 mm → 3,000 piksel • 0.9 mm → 10,000 piksel • 1.5 mm → 30,000 piksel |
| Field-of-View (FOV) | 0.5 mm → 55° • 0.9 mm → 55° • 1.5 mm → 70° |
| Depth-of-Field (DoF) | 0.5 mm → 1–3 mm • 0.9 mm → 2–5 mm • 1.5 mm → 3–10 mm |
| Distal Focus | Lensa fokus tetap (Fixed Focus Lens Set) |
| Mekanis | |
| Diameter Tabung | 0.5 mm / 0.9 mm / 1.5 mm |
| Panjang Kerja | 0.5 mm → 600 mm • 0.9 mm → 1000 mm • 1.5 mm → 800 mm |
| Radius Lentur Minimum | 0.5 mm → 1.5 inci (38 mm) • 0.9 mm → 2.5 inci (64 mm) • 1.5 mm → 3.5 inci (89 mm) |
| Artikulasi | Tidak ada (None) |
| Material Tabung | Poliamida Hitam (Black Polyimide Tube Construction) |
| Lingkungan Operasi | |
| Suhu Operasi | 0 °F – 170 °F (–18 °C – 77 °C) |
| Ketahanan Air | Tahan air hingga 1 atm / 1 bar (14.7 psig kedalaman 30 ft / 9 m) |
| Catatan | Handpiece hanya tahan cipratan (splash-proof only) |
| Thermostat | Yes |
| Condensor thermal detector | Yes |
| Anti-freeze detector | Yes |
| Overflow condensate drain protection | – |
| Protection | |
| Over drain protection system | Yes |
| Secondary drainpan | – |
| Display | |
| Thermometer (red 7 seg. 19 mm) | Yes |
| System status (2 colour LED) | Yes |
| Electrical equipment | Safety device |
| Evaporator coil | |
| Face area x rows | 25.5 sq.inch x 2 |
| Type fan (rpm) | 2700 |
| Number of fan x cfm (0.18 inH2O) | 1 x 50 |
| Condenser coil | |
| Face area x rows | 33.75 sq.inch x 2 |
| Type fan (rpm) | 2850 |
| Number of fan x cfm (0.2 inH2O) | 1 x 158 |
| Physical data | |
| Approx. weight (kgs) | 26 |
| Dimension (mm) | W:384 D:175 H:432 |
| Condensate drain | O.D. 3/8 inch |
| Internal casing | Electro-galvanize |
| Air filter | 168 x 250 |
