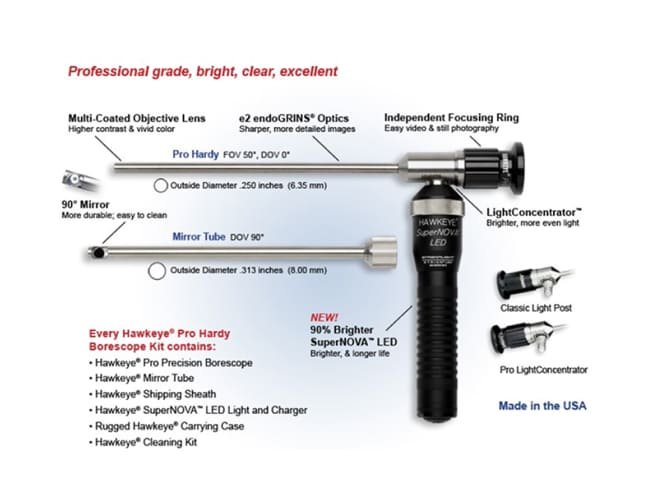

Pro Hardy menyediakan performa optik tinggi dengan FOV 50°, lensa objective multicoated, serta post lamp LightConcentrator. Tersedia dalam panjang 7″, 12″, 17″, dan 22″, unit ini cocok untuk pemeriksaan internal ruang besar di industri otomotif, penerbangan, dan perlindungan struktur.

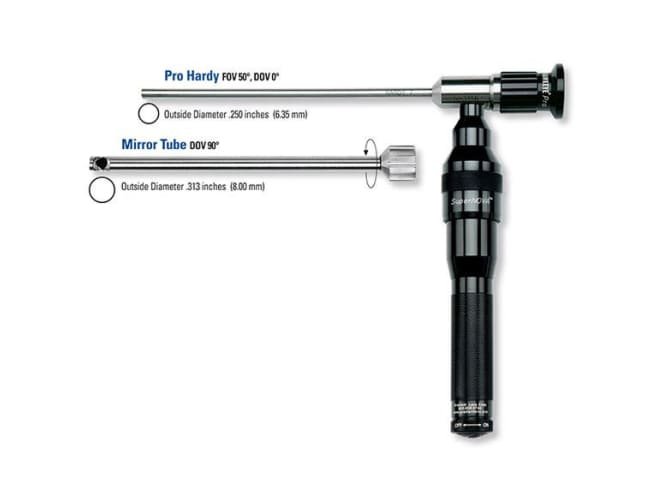

Hawkeye Pro Hardy Borescopes
Dibangun dari stainless steel 304 dan 303, Hawkeye Pro Hardy menghadirkan durabilitas tinggi dan ketahanan optik. Dengan aksesori mirror tube opsional, unit ini fleksibel untuk pandangan 90°, menjadikannya alat inspeksi rigid yang tangguh dan adaptif untuk aplikasi industri berat.
Features
Overview
| Kategori | Item | Spesifikasi |
|---|---|---|
| Optics | Field-of-View | 50° |
| Direction-of-View | 0° (90° with mirror tube accessory) | |
| Relay Optics | e2 endoGRINs® Glass Relay Lenses | |
| Magnification | Not fixed magnification | |
| Mechanical / Construction | Length | 180 / 305 / 435 / 559 mm |
| Diameter | Scope: 6.35 mm With Mirror Tube: 8.00 mm | |
| Lightpost | LightConcentrator™ ACMI configuration, Diameter 7.62 mm | |
| Eyecup | Standard DIN, 32 mm diameter, with independent focusing ring | |
| Materials | Tube | 304 Stainless Steel |
| All Machined Parts | 303 Stainless Steel | |
| Eyecup & Focusing Ring | Aluminum, black anodized | |
| Front Window | AR coated optical glass | |
| Illumination Fiber | Optical glass | |
| Relay Optics | e2 endoGRINs® gradient index glass lenses | |
| Environmental | Temperature Range | -20° to 120°C |
| Note 1 | Custom models available up to 300°C (contact sales) | |
| Note 2 | Not designed for <0°C, but some customers use in liquid nitrogen at 77K | |
| Pressure | Designed for ambient pressure. Successfully used up to 500 PSI and down to 10⁻⁶ Torr (operator risk). | |
| Chemical Resistance | Tube watertight and resistant to most hydrocarbons (oils, gasoline, hydraulic fluid, jet fuel). Avoid acids & strong alkalis (damage optical window). |
