PosiTest LPD menawarkan empat pilihan tegangan keluaran (9 V, 67.5 V, 67.5 V, 90 V) sesuai standar internasional, dengan kepekaan tinggi dan struktur tahan cuaca (IP65). Cocok untuk pemeriksaan pelapis di industri kelautan, pengecatan, dan konstruksi berat.
DeFelsko PosiTest LPD Low Voltage Pinhole Detector

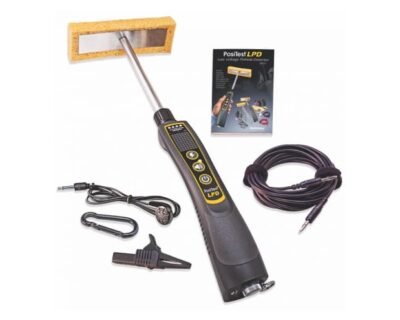

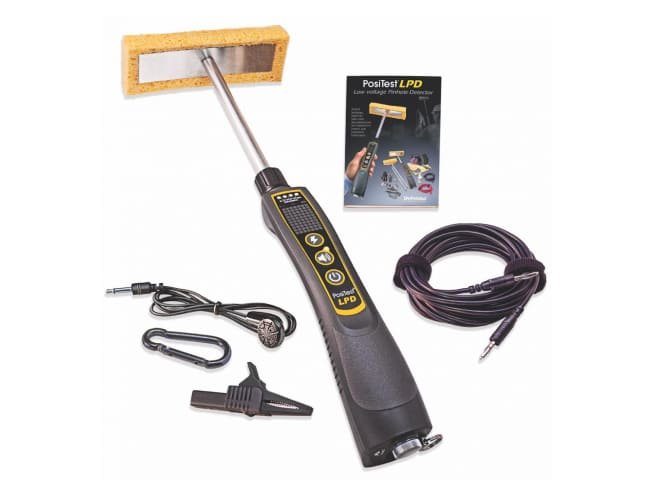

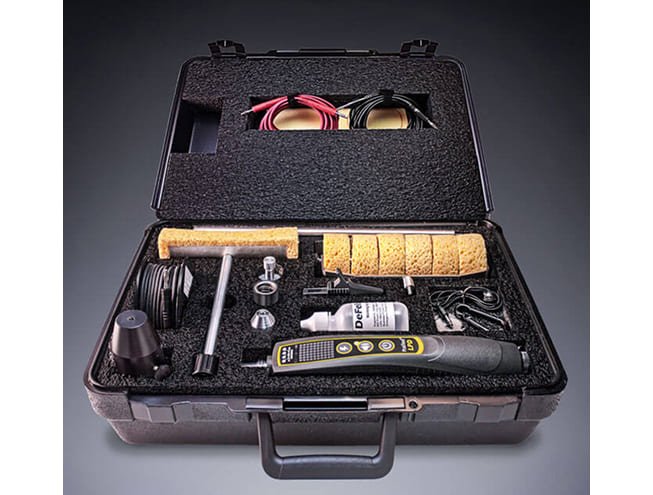

Berdesain ergonomis dan ringan (hanya ~180 g tanpa baterai), memudahkan inspeksi area besar atau sulit dijangkau. Kit lengkap mencakup kabel grounding, spons elektroda, dan sertifikat kalibrasi traceable ke NIST — siap uji langsung di lapangan. Want to confidently catch coating defects before they cost you? The PosiTest LPD gives you multiple voltage options, a rugged waterproof body, and accessories to adapt to many surfaces. Bright LEDs, a handy earbud, and a safety-ground check (GroundSense™) make inspecting feel safer. Lightweight and built to last even in tough job-site conditions
Features
Overview
| Specification Item | Unit | Value / Range |
|---|---|---|
| Voltage Settings | V | 9V ±5%; 67.5V ±5%; 67.5V ±5%; 90V ±5% |
| Sensitivity | Ω (Resistance) | 90 kΩ ±3%; 80 kΩ ±3%; 90 kΩ ±3%; 400 kΩ ±3% |
| Coating Thickness Range | µm / mils | 0 – 500 µm (0 – 20 mils) |
| Temperature Range (Operating) | °C | -10 to 50 °C (14 to 122 °F) |
| Battery Life | hours | > 150 hours (depending on battery type) |
| IP Rating | — | Meets or exceeds IP65 |
| Dimensions (without wand) | cm / inches | 27 × 6 × 5.5 cm (10.6″ × 2.3″ × 2.1″) |
| Weight (without batteries) | g / oz | 180 g (6.4 oz) |
| Power Source | — | 3 AAA batteries (alkaline or rechargeable) |
| Standards Conformance | — | ISO 14654, ISO 8289-A, ASTM G62, G6, D5162, BS7793-2, NACE TM0384, SP0188, AS3894.2, JIS K 6766 |
