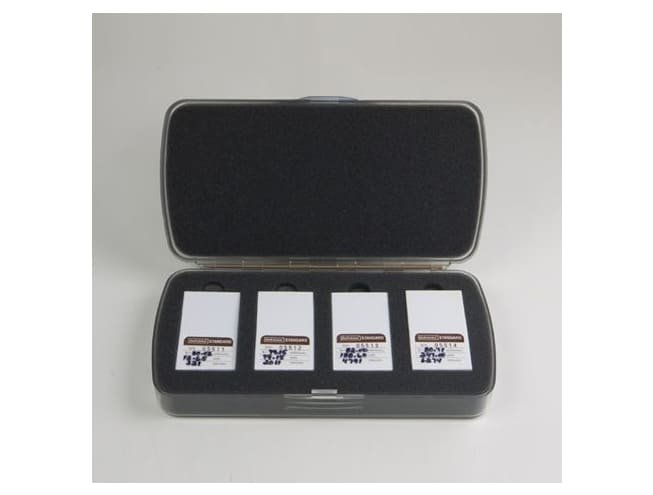

Dirancang untuk alat pengukur seri seperti PosiTector 6000 FT/FTS/NTS/FNTS dan PosiTector 200 D, blok‑blok ini dilabeli dalam satuan metrik & imperial dan dikemas dalam kotak akrilik tahan lapangan untuk pengujian cepat di lokasi produksi.

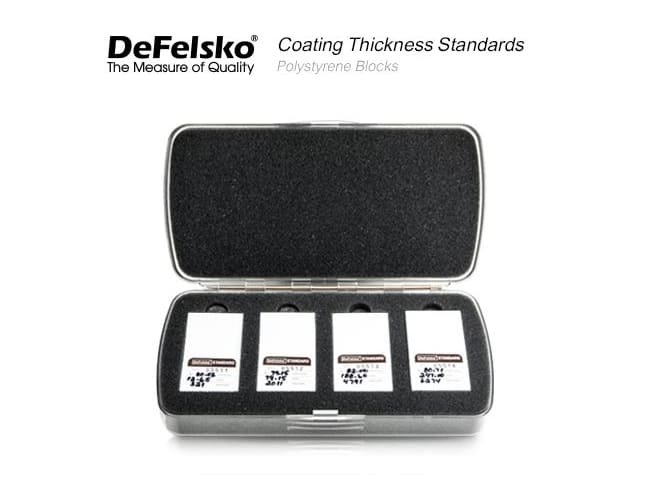

DeFelsko Certified Polystyrene Blocks (STD-P1 / PT-STD-P1)
Dengan dimensinya yang compact (38 × 70 mm) dan toleransi tinggi (±(2.5 µm + 0.05% dari ketebalan)), blok ini memungkinkan verifikasi alat yang melakukan pengukuran lapisan sangat tebal (> 1.500 µm) secara tepat.
Features
Overview
| Specification | Detail / Value |
|---|---|
| Order Code / Model | STD-P1 (also known as PT-STD-P1) |
| Thickness of Block 1 | 375 µm (15 mils) |
| Thickness of Block 2 | 2.00 mm (80 mils) |
| Thickness of Block 3 | 4.50 mm (185 mils) |
| Thickness of Block 4 | 6.50 mm (250 mils) |
| Accuracy / Tolerance | ±(2.5 µm + 0.05 % of block thickness) / ±(0.1 mil + 0.05 % of block thickness) |
| Material / Substrate | Polystyrene standard blocks |

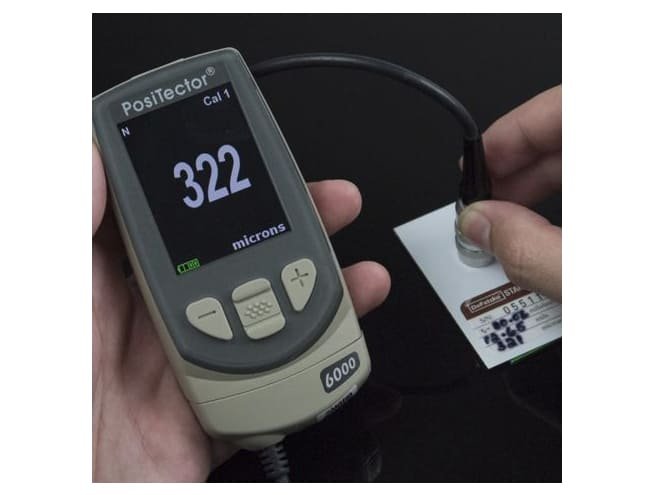

| Compatibility | For use with DeFelsko PosiTector 6000 FT / FTS / NTS / FNTS / FTRS and PosiTector 200 D coating thickness gauges; also works with other magnetic, eddy-current, ultrasonic gauges. |
| Block Dimensions | 38 mm × 70 mm (1.5″ × 2.75″) each block (for P1-P7 series) |

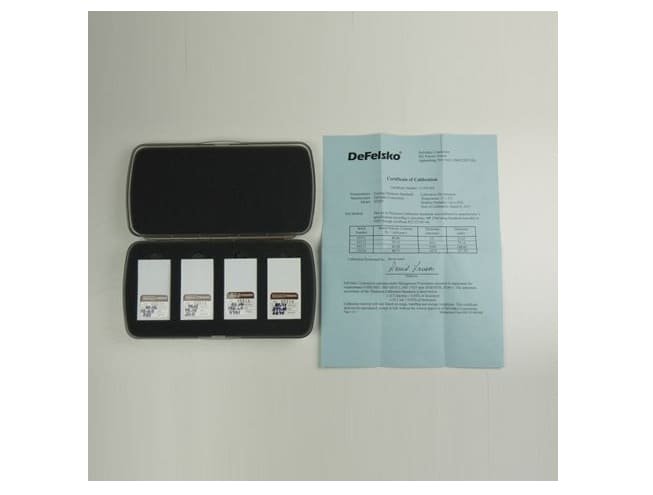

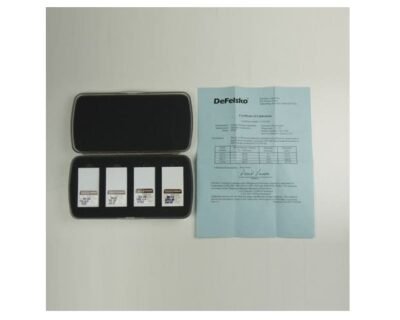

| Units Marked | Both Metric (µm / mm) and Imperial (mils) on blocks & certificate |
