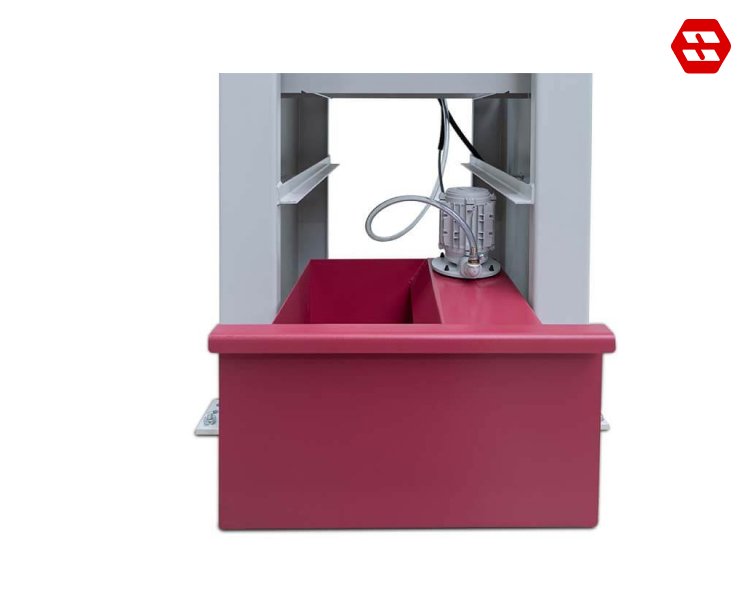

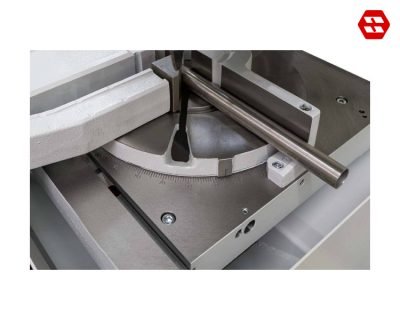

Cold Saw VMS 370 menawarkan kinerja tinggi dengan operasi mudah dan stabil. Mekanisme manual, mitre adjustment yang user-friendly, serta sistem pendingin terintegrasi menjaga hasil potong bersih dan mata gergaji tahan lama. Ideal untuk pemotongan logam yang membutuhkan akurasi baik pada sudut standar.

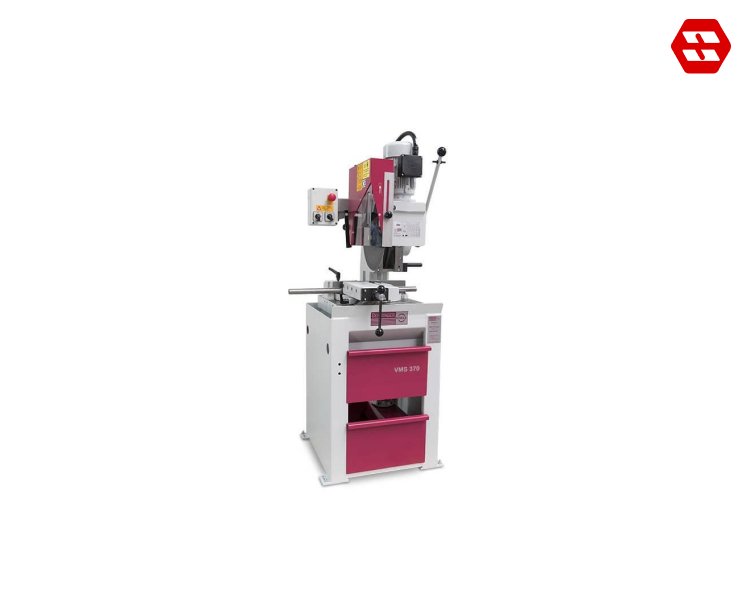

Circular Saw Machine Metal-Cutting Cold Saw VMS 370 BEHRINGER

Mesin gergaji bundar VMS 370 dirancang untuk hasil potong konsisten pada material solid dan pipa logam. Rangka kokoh, ukuran kompak, dan pendingin terpadu membuatnya cocok di ruang produksi terbatas. Gearbox shock-absorbing meningkatkan umur alat dan menjaga kualitas permukaan potongan.

Features

Versatile Options

Ergonomic caliper available in different measuring ranges of 150mm, 200mm, and 300mm,

Built to Last

Crafted with a mechanical frame in 3.5 mm thick hardened and ground stainless steel, our IP67 caliper ensures durability and longevity.

Enhanced Efficiency

Maximize productivity with a swift maximum speed of displacement of 2.5m/sec,

User-Friendly Design

Experience effortless measurement reading with the new extra-large display unit

Intelligent Power Management

enefit from the automatic wake-up feature (Absolute System S.I.S) when moving the electronic on its frame and enjoy the energy-saving sleeping mode (Absolute System S.I.S) after 20 minutes of inactivity.

Overview

Cutting Range
Flat 90°	200 x 100 mm
Flat 45°	140 x 100 mm
Flat 30°	100 x 100 mm ¹⁾

Square 90°	120 mm ²⁾
Square 45°	100 mm
Square 30°	90 mm ¹⁾

Round 90°	130 mm
Round 45°	130 mm
Round 30°	105 mm ¹⁾

Performance Characteristics
Drive power	2.0 / 2.6 kW
RPM standard	17 / 34 – 34 / 68 min^-1
RPM optional	8 / 16 / 32 / 64 min^-1
Saw blade diameter	370 mm
Saw feed	manual
Material clamping	manual
