Mesin HCS 90 E adalah solusi all-round untuk pemotongan logam hingga Ø90 mm. Dilengkapi pengumpan servo-driven dan sistem kontrol intuitif, mesin ini memastikan hasil potong bersih, siklus kerja cepat, dan kemudahan pembersihan serpihan.

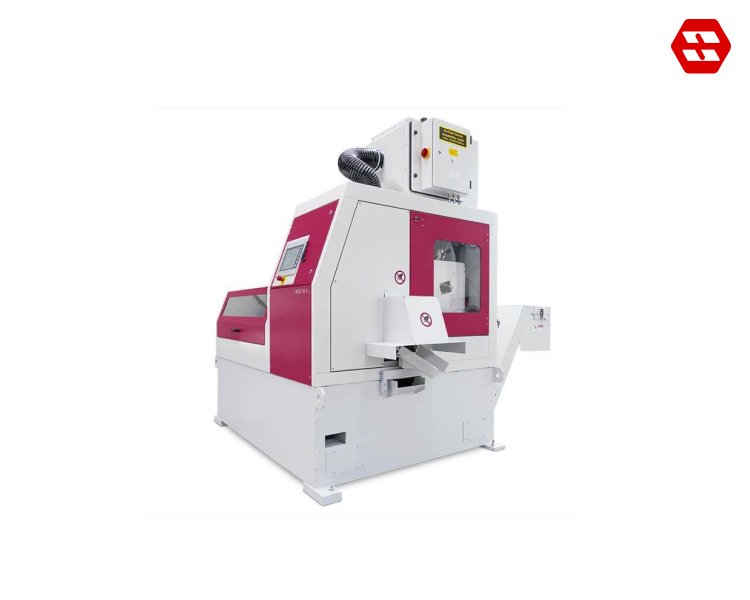

Circular Saw Machine High Speed HCS 90 E BEHRINGER

BEHRINGER High Speed HCS 90 E merupakan pilihan ideal untuk industri yang membutuhkan performa tinggi, presisi permukaan potong yang halus, dan ketahanan mesin maksimal. Dilengkapi sistem penjepitan hidraulik dan gearbox rendah getaran untuk stabilitas optimal.

Features

Versatile Options

Ergonomic caliper available in different measuring ranges of 150mm, 200mm, and 300mm,

Built to Last

Crafted with a mechanical frame in 3.5 mm thick hardened and ground stainless steel, our IP67 caliper ensures durability and longevity.

Enhanced Efficiency

Maximize productivity with a swift maximum speed of displacement of 2.5m/sec,

User-Friendly Design

Experience effortless measurement reading with the new extra-large display unit

Intelligent Power Management

enefit from the automatic wake-up feature (Absolute System S.I.S) when moving the electronic on its frame and enjoy the energy-saving sleeping mode (Absolute System S.I.S) after 20 minutes of inactivity.

Overview

Cutting Range
Cutting range 90° round	90 mm
Cutting range 90° square	75 x 75 mm
Smallest dimension to be sawn round	10 mm
Smallest dimension to be sawn square	10 x 10 mm

Performance Characteristics
Drive power	8 kW
RPM	20 – 250 min^-1
Saw blade diameter	250 / 285 / 315 mm
Feeding length single stroke	1,000 mm
Feed rate	1,250 mm/s

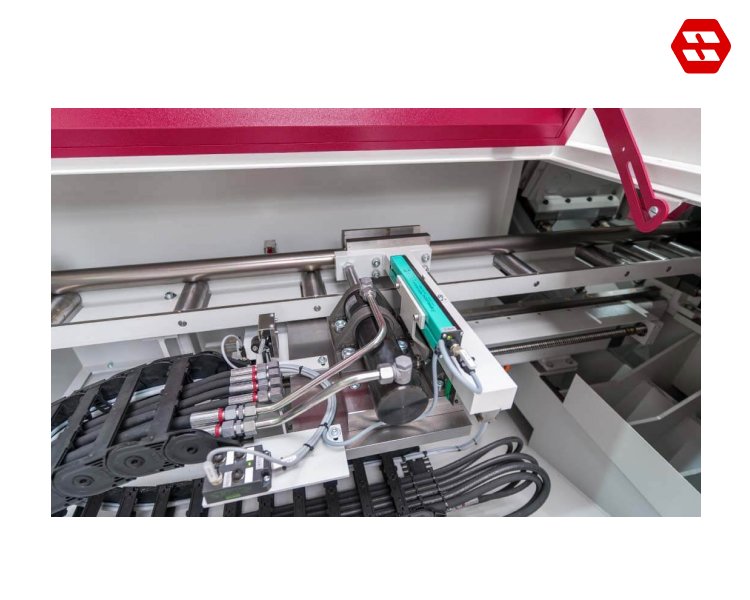

Saw feed	servo-driven

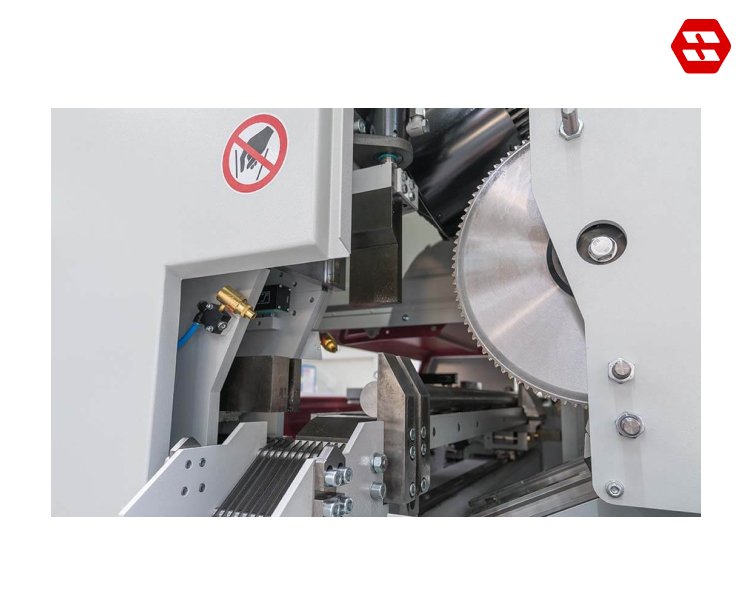

Material clamping	hydraulic
Saw drive	frequency-controlled
