Mesin ini dilengkapi sistem pengumpanan bar 1000 mm yang dapat diulang, inverter variabel untuk kecepatan blade 15-150 rpm, serta penjepitan pneumatik dan vertikal kuat untuk material. Struktur besi cor menyerap getaran, sementara material library otomatis menyesuaikan kecepatan dan laju pemotongan berdasarkan jenis bahan.

Automatic Circular Saw Machine S_CAL Evo Basic Sylvac

Features

Versatile Options

Ergonomic caliper available in different measuring ranges of 150mm, 200mm, and 300mm,

Built to Last

Crafted with a mechanical frame in 3.5 mm thick hardened and ground stainless steel, our IP67 caliper ensures durability and longevity.

Enhanced Efficiency

Maximize productivity with a swift maximum speed of displacement of 2.5m/sec,

User-Friendly Design

Experience effortless measurement reading with the new extra-large display unit

Intelligent Power Management

enefit from the automatic wake-up feature (Absolute System S.I.S) when moving the electronic on its frame and enjoy the energy-saving sleeping mode (Absolute System S.I.S) after 20 minutes of inactivity.

Overview

Spesifikasi	Nilai
Model	TIGER 372 CNC LR 4.0
Tipe Mesin	Automatic vertical circular sawing machine
Material Target	Steel & logam ferrous lainnya
Mode Operasi	Automatic & semi-automatic
Miter Cutting Range	−45° ➝ +60°
Controller	MEP40 CNC dengan touchscreen
Max Cutting Ø (0°)	120 mm ø (steel)
Max Cutting Profil	180 × 100 mm
Min Cutting Length	10 mm
Rest Piece (no feed)	170 mm
Blade Size	HSS 370 × 32 × 3 mm
Blade Motor Power	5.0 kW – Three-phase
Blade Speed Range	15 ÷ 150 rpm
Feeder Stroke	1000 mm (repeatable)
Clamping System	Pneumatic horizontal + vertical vice

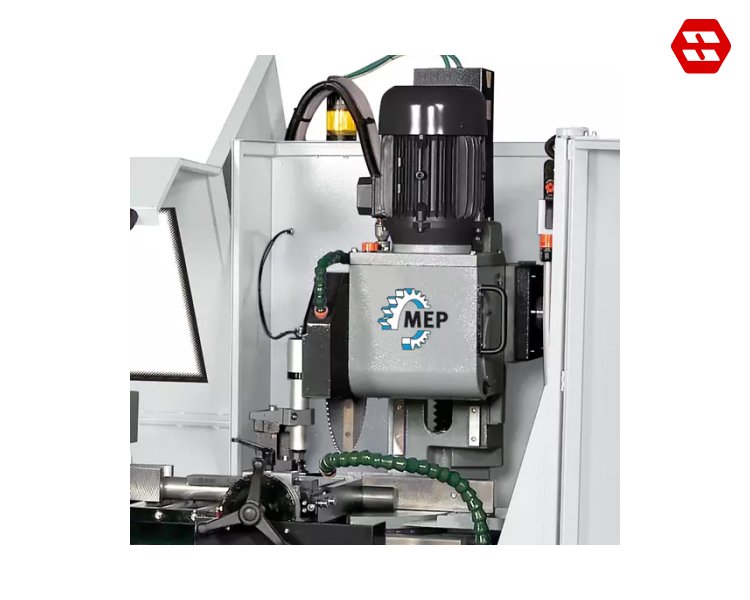

Structure	Cast-iron for vibration reduction
Adaptive Material Library	Yes (automatically adjusts speed & feed)
Safety Features	Full guarding with timed access
Optional Add-ons	Chip conveyor, Industry 4.0 IoT kit
